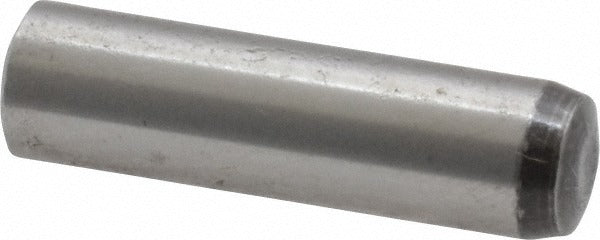

Value Collection 536116PR Precision Dowel Pin 8x30mm Grade 8

Product Description

The VALUE COLLECTION 536116PR is a precision dowel pin manufactured from alloy steel to Grade 8 material standards. It measures 8 mm in diameter and 30 mm in overall length, with rounded ends and a bright uncoated finish. This pin is produced to DIN 6325 and ISO 8734 dimensional standards, ensuring tight tolerances for accurate component alignment and positioning. It weighs approximately 0.05 pounds. Machinists, tool and die makers, and precision assembly technicians use this pin to locate and align mating components in fixtures, jigs, dies, and mechanical assemblies where repeatable positional accuracy is required.

This dowel pin is suited for use in industrial manufacturing, tooling, and machine assembly applications where close-tolerance alignment is critical. The alloy steel construction and Grade 8 designation indicate elevated hardness and strength compared to standard low-carbon dowel pins. The bright finish is left uncoated, which is appropriate for controlled indoor environments. This item is sold individually but requires a minimum order quantity of 100 pieces per order.

Key Features

• DIN 6325 and ISO 8734 standards for dimensional precision and interchangeability
• 8 mm diameter x 30 mm length with rounded ends for guided insertion
• Alloy steel construction to Grade 8 for high hardness and shear strength
• Bright uncoated finish suitable for dry or lightly lubricated assemblies
• Minimum order quantity of 100 pieces ensures job-lot availability

Compatibility

Designed as a standard DIN 6325 and ISO 8734 precision dowel pin for use in fixtures, jigs, dies, and machine assemblies requiring an 8 mm nominal diameter alignment pin.

Installation Notes

Precision dowel pins are typically press-fit or push-fit into reamed holes by machinists or mechanical assembly technicians. Ensure the receiving hole is reamed to the correct tolerance class per DIN 6325 or ISO 8734 specifications before installation. Use appropriate press or drive tooling aligned to the pin axis to avoid bending or galling. Inspect hole depth to confirm the pin will not bottom out and compromise seating of mating components.
