Value Collection 536081PR Dowel Pin 6x22mm Grade 8

Product Description

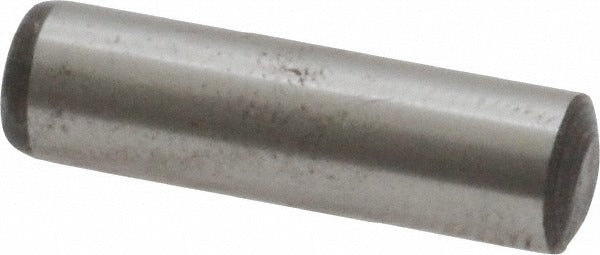

The VALUE COLLECTION 536081PR is a precision dowel pin manufactured from alloy steel to Grade 8 specifications. It measures 6 mm in diameter and 22 mm in overall length, with a rounded end type and a bright uncoated finish. This pin is produced to DIN 6325 and ISO 8734 standards, ensuring tight dimensional tolerances required for accurate component alignment and load transfer. It is used in tool and die work, machine assembly, and fixture building by machinists, tool makers, and mechanical assembly technicians who need consistent, repeatable part positioning.

Precision dowel pins of this type are common in industrial manufacturing, tooling, and mechanical assembly environments. The 6 mm diameter and 22 mm length make this pin well suited for medium-duty alignment applications in metal fixtures, mold components, and machine bases. The bright finish indicates the pin is uncoated, which is standard for precision fits where plating buildup would affect tolerance. This item is sold individually but carries a minimum order quantity of 100 pieces per order.

Key Features

• Alloy steel construction at Material Grade 8 for high strength and hardness
• Manufactured to DIN 6325 and ISO 8734 standards for precision dimensional control
• 6 mm diameter with 22 mm overall length for medium-duty alignment use
• Rounded end type for ease of insertion and consistent seating
• Bright uncoated finish maintains tight tolerances without plating interference
• UNSPSC Code 31163203 for procurement and catalog classification

Compatibility

Designed as a standard-specification precision dowel pin per DIN 6325 and ISO 8734, suitable for use in fixtures, tooling, molds, and mechanical assemblies that require a 6 mm nominal diameter locating pin.

Installation Notes

Precision dowel pins are installed by machinists and tool makers using a press or mallet with an appropriate driver. The mating bore should be reamed to the correct tolerance class per DIN 6325 or ISO 8734 before installation to ensure proper fit. Never force a pin into an undersized or misaligned hole, as this can damage the bore or the pin. Always verify that machinery or equipment is fully de-energized and de-pressurized before disassembling and reassembling components that use locating pins.
