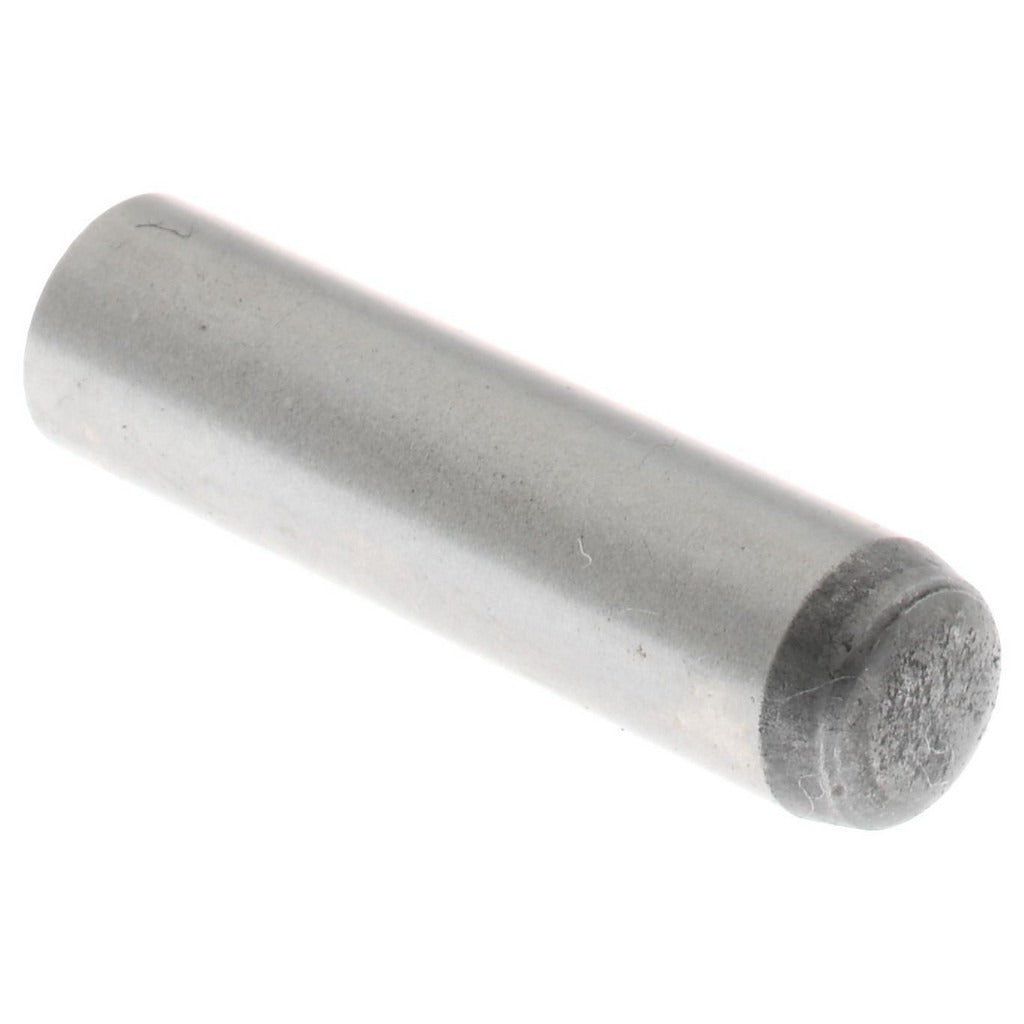

Value Collection 536077PR Precision Dowel Pin 6x24mm Grade 8

Product Description

The VALUE COLLECTION 536077PR is a precision dowel pin used to align, locate, and retain mating components in assemblies requiring tight positional tolerance. Manufactured from Grade 8 alloy steel with a bright uncoated finish, this pin measures 6 millimeters in diameter and 24 millimeters in overall length. The rounded end type allows guided insertion into reamed or ground holes. It conforms to DIN 6325 and ISO 8734 fastener standards, making it suitable for precision mechanical and tooling applications where dimensional consistency is critical. Machinists, tool and die makers, and mechanical assembly technicians are the typical end users.

This dowel pin is applied in jigs, fixtures, dies, and precision machine assemblies where accurate part-to-part alignment is required. It is well suited for production environments where repeated disassembly and reassembly must maintain consistent positional accuracy. The DIN 6325 and ISO 8734 compliance ensures interchangeability with other pins manufactured to the same standard, supporting use in both domestic and international equipment platforms. This item is sold individually and requires a minimum order quantity of 100 pieces.

Key Features

• 6 mm diameter x 24 mm overall length for precision fit in reamed holes
• Grade 8 alloy steel construction for high shear strength and hardness
• Rounded end type for guided, controlled insertion
• Bright uncoated finish — no added coating thickness to affect tolerance
• Conforms to DIN 6325 and ISO 8734 international fastener standards
• Minimum order quantity of 100 pieces; sold as individual units per package

Compatibility

Designed as an OEM-style precision locating pin for use in jigs, fixtures, dies, and mechanical assemblies that specify DIN 6325 or ISO 8734 compliant 6 mm dowel pins.

Installation Notes

Precision dowel pins are installed by qualified machinists or mechanical assembly technicians. The receiving hole should be reamed or ground to the appropriate tolerance class per the applicable DIN or ISO specification before pin insertion. Never hammer a precision dowel pin into an undersized or unprepared hole, as this can alter the pin geometry and compromise alignment accuracy. Ensure all equipment is de-energized and secured before performing any fixture or assembly work involving dowel pin installation or removal.
