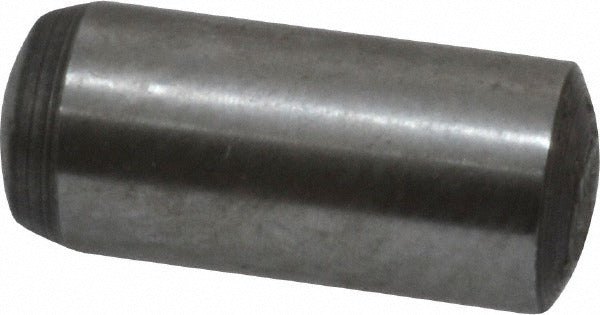

Value Collection 536076PR Precision Dowel Pin 6x14mm Grade 8

Product Description

The VALUE COLLECTION 536076PR is a precision dowel pin designed for accurate alignment and positioning in mechanical assemblies. Machined from alloy steel to Material Grade 8, this pin delivers the hardness and dimensional consistency required for tight-tolerance applications. The 6 mm diameter and 14 mm overall length conform to DIN 6325 and ISO 8734 standards, making it a recognized metric form factor in industrial and commercial fabrication. The bright, uncoated finish is suitable for applications where corrosion exposure is controlled. Machinists, toolmakers, and maintenance technicians install these pins to locate and align components such as fixtures, dies, molds, and structural assemblies.

This dowel pin is used in precision machining, tooling, and general mechanical assembly environments where controlled fit and reliable positioning are critical. The rounded end type allows guided insertion into reamed holes, reducing the risk of hole damage during assembly. It is appropriate for both production manufacturing settings and maintenance-and-repair operations where DIN 6325 or ISO 8734 metric pins are specified. Sold individually with a minimum order quantity of 100 pieces.

Key Features

• Conforms to DIN 6325 and ISO 8734 standards for interchangeability in metric applications
• Alloy steel construction at Material Grade 8 for high hardness and load capacity
• 6 mm diameter x 14 mm length for tight-tolerance alignment tasks
• Rounded end type for controlled insertion into reamed holes
• Bright, uncoated finish suitable for indoor and controlled-environment use
• Minimum order quantity of 100 pieces supports production and inventory stocking needs

Compatibility

Designed as an OEM-style metric precision dowel pin conforming to DIN 6325 and ISO 8734 for use in any application specifying a 6 mm diameter by 14 mm length Grade 8 alloy steel alignment pin.

Installation Notes

Precision dowel pins of this type are installed by machinists and toolmakers and require a properly reamed hole sized to the appropriate interference or transition fit per the applicable standard. Power down and de-energize any equipment before pin installation or removal in live assemblies. Do not drive pins with a steel hammer directly on the end face; use a brass or soft-metal punch to avoid surface damage and dimensional distortion. Follow applicable shop safety and workholding practices during press or hand-drive installation.
