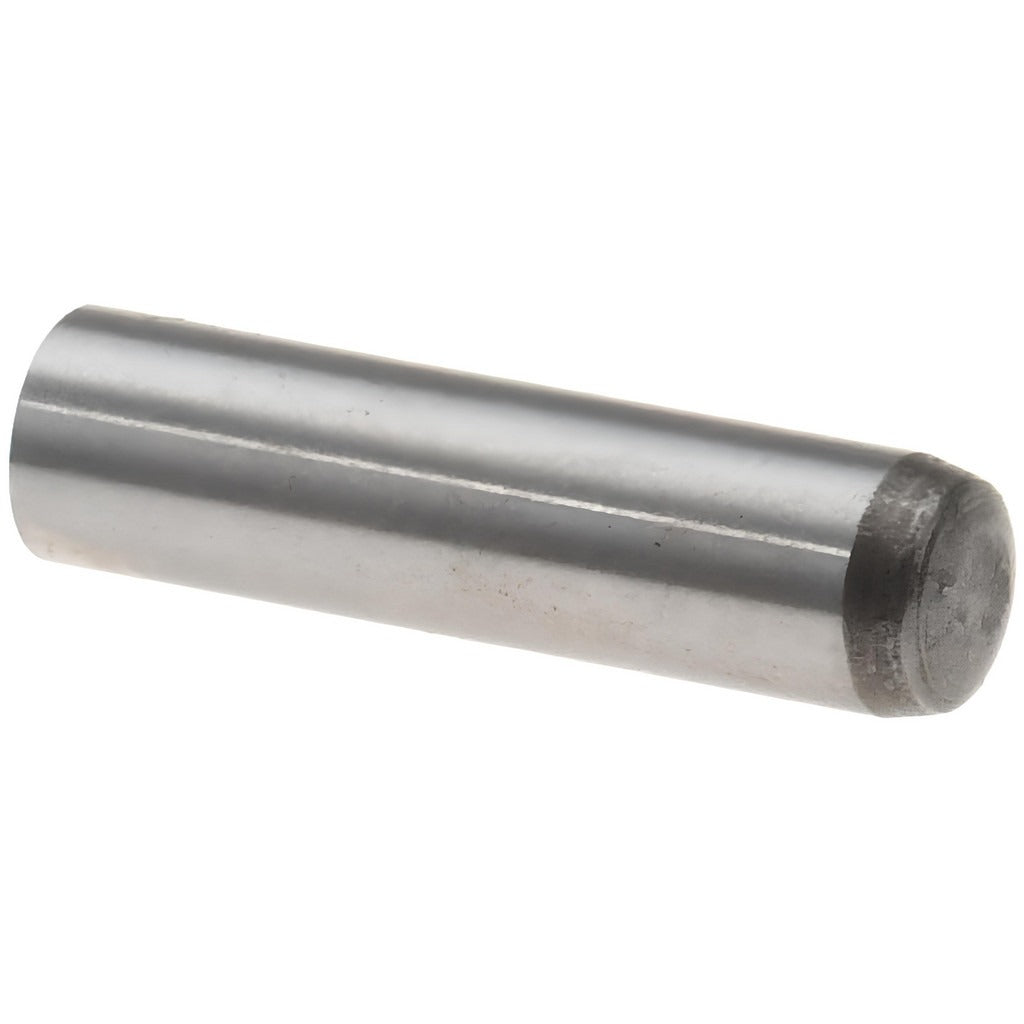

Value Collection 536056PR Precision Dowel Pin 5x20mm Grade 8

Product Description

The VALUE COLLECTION 536056PR is a precision dowel pin machined from alloy steel to Grade 8 specifications. It measures 5 mm in diameter and 20 mm in overall length with rounded ends and a bright, uncoated finish. This pin is manufactured to DIN 6325 and ISO 8734 standards, ensuring tight dimensional tolerances for accurate part alignment, component location, and fixture assembly. It is installed by machinists, toolmakers, and maintenance technicians wherever repeatable, high-precision positioning is required in jigs, dies, molds, and mechanical assemblies.

This dowel pin is suited for use in precision fixturing, machine tool assemblies, mold and die alignment, and general industrial fabrication applications. Its Grade 8 alloy steel construction provides the hardness and shear strength needed in demanding production environments. It is equally appropriate for OEM assembly lines and maintenance-and-repair operations requiring exact part registration. This item is sold individually but requires a minimum order quantity of 100 pieces per order.

Key Features

• Manufactured to DIN 6325 and ISO 8734 standards for consistent dimensional accuracy
• Grade 8 alloy steel construction for high hardness and shear resistance
• Rounded end type for ease of insertion into close-tolerance bores
• Bright, uncoated finish suitable for most dry or lightly lubricated environments
• 5 mm diameter by 20 mm length — a common size for compact precision assemblies

Compatibility

Designed as a standard-compliance replacement or addition for any application specifying a DIN 6325 or ISO 8734 precision dowel pin with a 5 mm diameter and 20 mm length.

Installation Notes

Precision dowel pins are typically pressed or driven into reamed holes held to close H7 or m6 tolerance fits; verify bore tolerance before installation. Power down and de-energize any machinery before servicing fixtures or assemblies that contain dowel pins. Use a proper pin driver or arbor press — do not strike the pin directly with a hammer, as this can damage the finish or alter the bore. Removal should be performed with a punch from the opposite end or a dedicated pin extractor.
