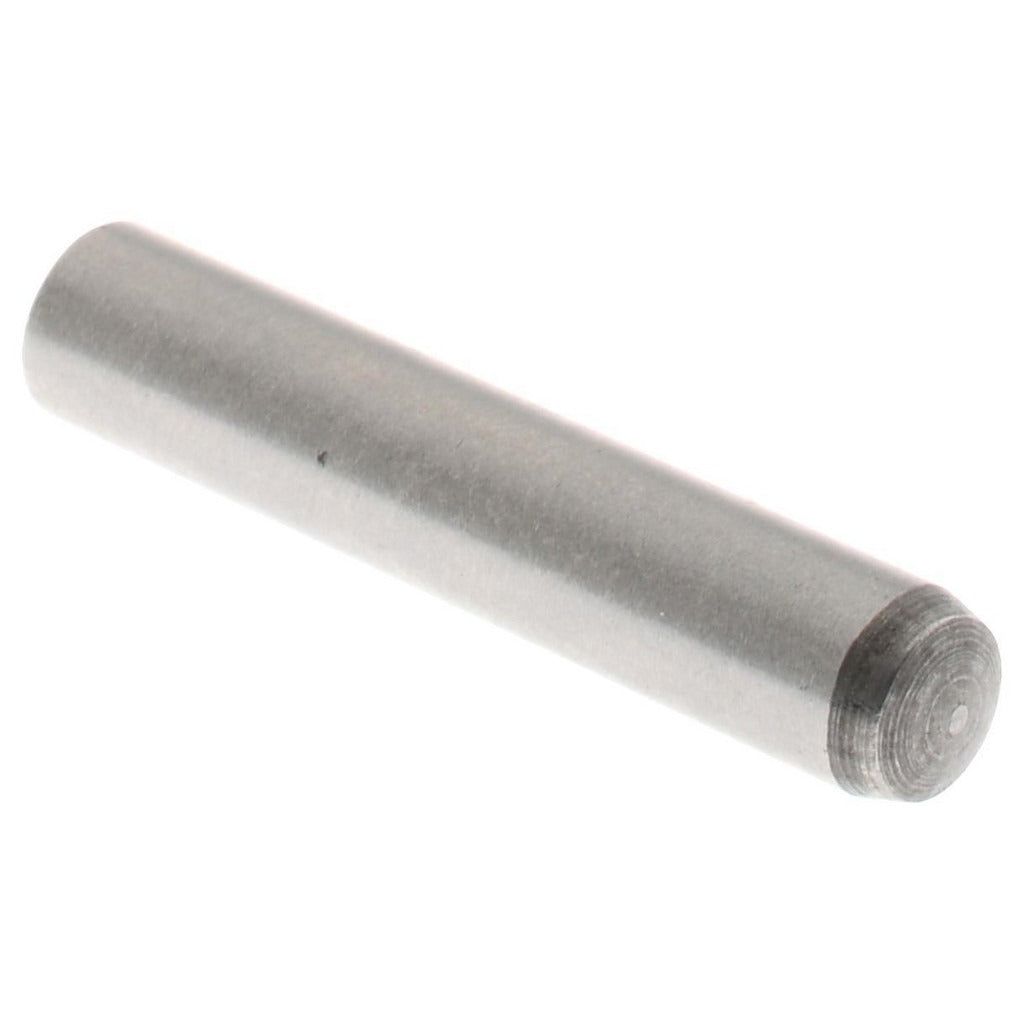

Value Collection 536025PR Precision Dowel Pin 4x14mm Grade 8

Product Description

The VALUE COLLECTION 536025PR is a precision dowel pin manufactured from Grade 8 alloy steel with a bright, uncoated finish. Measuring 4 mm in diameter and 14 mm in overall length, this pin is produced to DIN 6325 and ISO 8734 standards, ensuring tight dimensional tolerances and consistent performance in precision alignment applications. The rounded end type facilitates clean insertion into bored or reamed holes. Machinists, toolmakers, and assembly technicians rely on this pin where accurate part-to-part alignment and repeatable positioning are required in jigs, fixtures, dies, and mechanical assemblies.

This dowel pin is suited for use in industrial manufacturing environments where close-tolerance hole alignment is critical. Typical applications include fixture building, mold and die construction, machine component alignment, and precision subassembly work. The DIN 6325 and ISO 8734 compliance makes this pin interchangeable with other hardware meeting those standards, supporting use in both domestic and international manufacturing contexts. Sold individually, with a minimum order quantity of 100 pieces.

Key Features

• DIN 6325 and ISO 8734 compliant for standardized precision tolerances
• Grade 8 alloy steel construction for high strength and wear resistance
• Bright, uncoated finish suitable for close-tolerance fits
• Rounded end type for controlled insertion into reamed holes
• 4 mm diameter x 14 mm length for compact precision alignment tasks

Compatibility

Designed as a DIN 6325 and ISO 8734 compliant precision dowel pin, suitable for use in jigs, fixtures, dies, and assemblies requiring standardized 4 mm precision alignment hardware.

Installation Notes

Installation is typically performed by machinists or toolmakers using reamed holes sized to the appropriate tolerance class for the intended fit. Power down and de-energize any associated machinery before inserting or removing dowel pins. Use a proper pin press or arbor press rather than hammering directly on the pin to avoid deforming the shank or damaging the mating bore. Consult relevant engineering standards for hole tolerance specifications appropriate to the fit class required.
