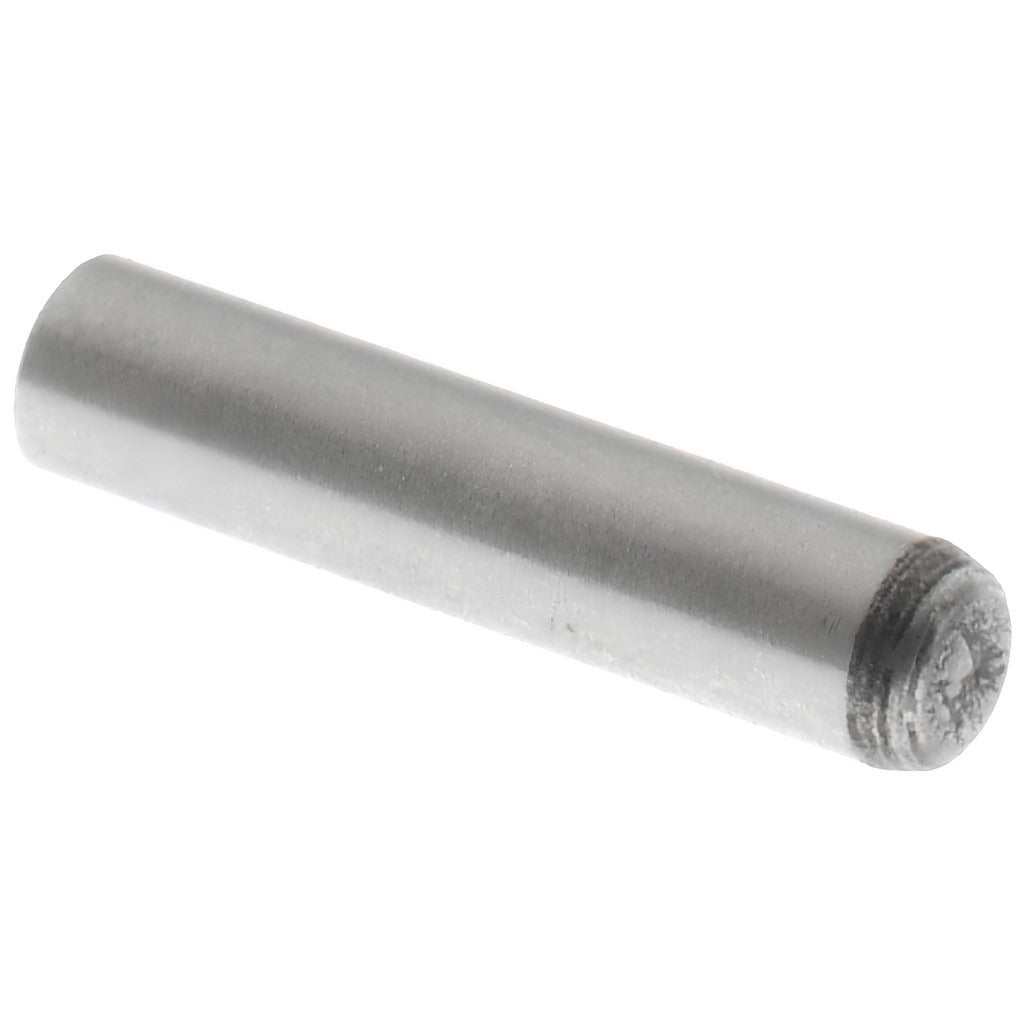

Value Collection 536011PR Precision Dowel Pin 3x14mm Grade 8

Product Description

The VALUE COLLECTION 536011PR is a precision dowel pin manufactured from Grade 8 alloy steel with a bright, uncoated finish. This pin measures 3 mm in diameter and 14 mm in overall length, featuring rounded ends for consistent seating and alignment in mating components. Precision dowel pins of this type are used to locate, align, and retain machine parts with tight tolerances. The part meets DIN 6325 and ISO 8734 fastener standards, ensuring dimensional accuracy and interchangeability across compliant assemblies. Machinists, tool-and-die makers, and mechanical assembly technicians are the primary installers of this component in production and maintenance environments.

This dowel pin is suited for precision alignment applications in machined fixtures, jigs, dies, molds, and structural assemblies where repeatable positioning is required. The rounded end type allows for guided insertion into reamed or precision-bored holes without deforming the bore entry. It is commonly used in both light-production and heavy industrial settings wherever tight-tolerance part location is needed. This SKU ships in a package quantity of 1, with a minimum order quantity of 100 units.

Key Features

• Meets DIN 6325 and ISO 8734 standards for precision dowel pin dimensional and tolerance requirements
• Grade 8 alloy steel construction for high strength and wear resistance
• Rounded end type for guided insertion into precision-bored or reamed holes
• Bright, uncoated finish suitable for use in controlled environments where coating buildup would affect fit
• 3 mm diameter x 14 mm length for compact, precise alignment tasks

Compatibility

Designed as an OEM-style precision locating component for use in machined assemblies, fixtures, jigs, molds, and dies that call for DIN 6325 or ISO 8734 compliant dowel pins with a 3 mm diameter and 14 mm length.

Installation Notes

Installation is typically performed by machinists or mechanical assembly technicians using a press or mallet in conjunction with a precision-bored or reamed receiving hole sized to the appropriate tolerance class per DIN 6325 or ISO 8734. Ensure mating hole geometry and surface finish are correct before pressing the pin to avoid galling or bore damage. De-energize and lock out any powered equipment before performing alignment or assembly work on machinery. Do not use impact methods that could alter pin geometry or damage the receiving bore.
