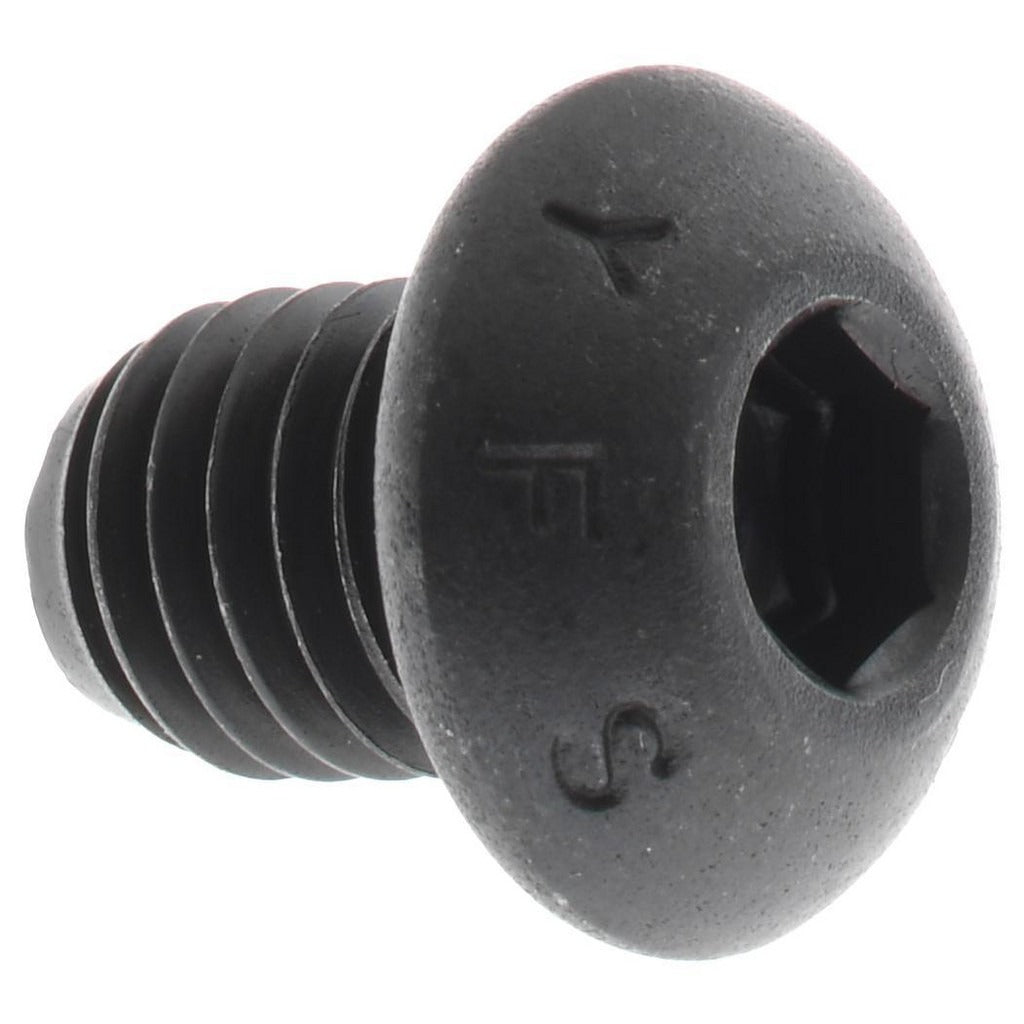

Value Collection 535106PR M8x1.25 Button Socket Cap Screw

Product Description

The VALUE COLLECTION 535106PR is a fully threaded button socket cap screw designed for metric fastening applications requiring a low-profile head. Manufactured from alloy steel at material grade 12.9, it carries a black oxide finish that provides mild corrosion resistance and a clean appearance. The hex socket drive accepts a 5 mm hex key for installation. With an M8x1.25 thread and a 10 mm length under head, this screw suits applications where a standard hex head profile would interfere with clearance or aesthetics. It conforms to ANSI/ASME B18.3.4M and ISO 7380 fastener standards.

This screw is used in mechanical assemblies, machine guarding, tooling fixtures, and equipment panels where a button head profile is required to keep fasteners flush or recessed. The 12.9 grade alloy steel construction gives it high tensile strength suitable for demanding industrial and commercial applications. It installs with a right-hand thread direction and a 4G or 6G thread fit class. Minimum order quantity is 100 pieces per order, packaged in quantities of 1.

Key Features

• M8x1.25 metric thread with right-hand direction and 4G/6G fit class
• Grade 12.9 alloy steel for high tensile strength in demanding assemblies
• Black oxide coating for mild corrosion resistance and low-glare finish
• Button head profile with 5 mm hex socket drive for low-clearance installations
• Conforms to ANSI/ASME B18.3.4M and ISO 7380 fastener standards
• Fully threaded along the 10 mm length under head

Compatibility

Designed as a standard ISO 7380 metric button socket cap screw suitable for use in mechanical assemblies, industrial equipment, and tooling fixtures requiring an M8x1.25 thread.

Installation Notes

Install using a 5 mm hex key or socket bit driver. Power down or de-energize any equipment before fastener replacement in live assemblies. Verify mating thread class and thread engagement depth prior to installation. Do not exceed rated torque for grade 12.9 fasteners as specified in the applicable fastener standard for the joint being assembled.
