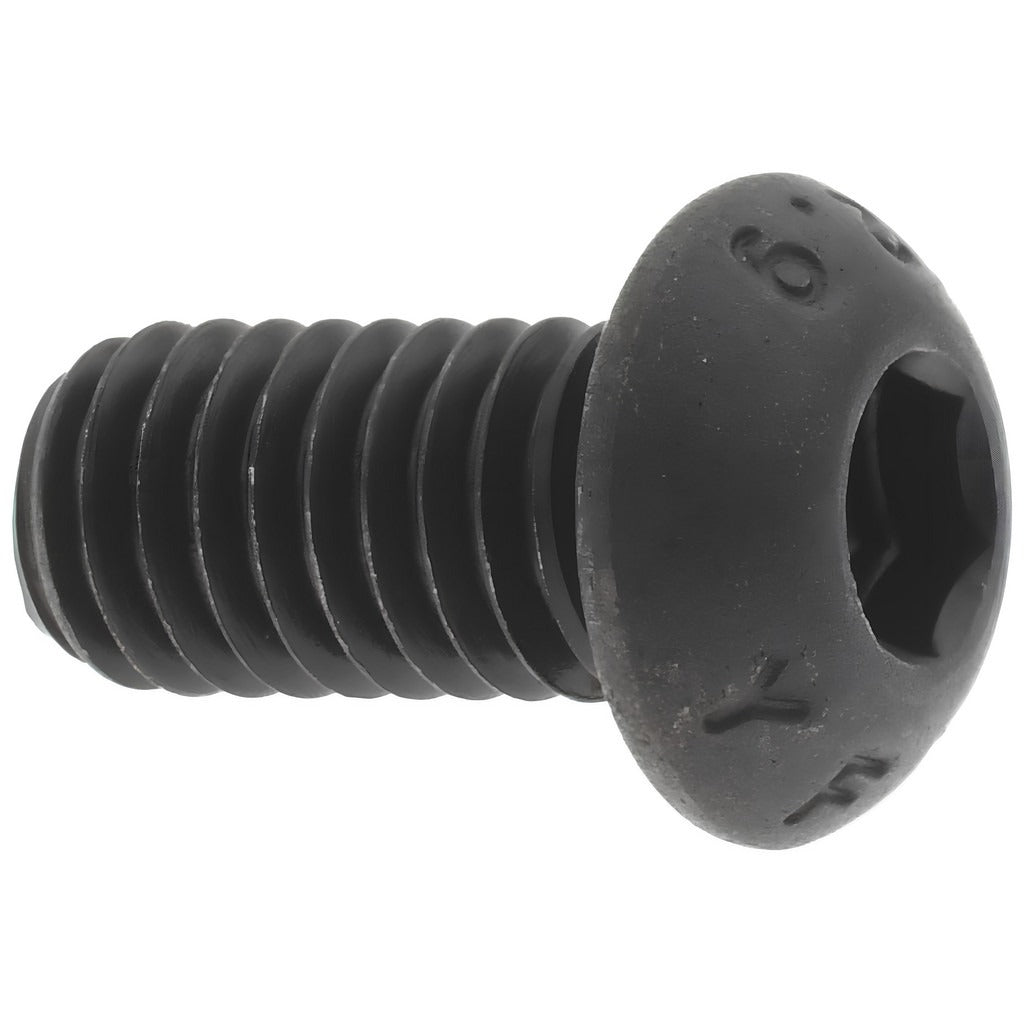

Value Collection 535068P M6x1 Button Socket Cap Screw

Product Description

The VALUE COLLECTION 535068P is a button socket cap screw designed for metric fastening applications requiring a low-profile head with high clamping strength. Manufactured from alloy steel at material grade 12.9 and finished with black oxide coating, this screw delivers hardness in the 38-43 HRC range alongside corrosion resistance suited to industrial and mechanical environments. The M6x1 thread and 12mm length under head make it a common choice for machine assemblies, equipment enclosures, and structural components where a hex socket drive provides controlled torque application. Installation is performed with a 4mm hex key. This screw is fully threaded and conforms to ANSI/ASME B18.3.4M and ISO 7380 standards.

This fastener is used across a wide range of industrial, mechanical, and manufacturing applications. The button head profile reduces the risk of snagging on surrounding components while the hex socket drive allows access in confined spaces. Grade 12.9 alloy steel construction suits high-stress assemblies in machinery, automation equipment, and structural hardware. Black oxide finish provides a functional appearance with mild corrosion resistance. Technicians and machinists installing this screw should verify thread fit class requirements, as this fastener is rated for 4G and 6G thread fit classes per metric standards.

Key Features

• M6x1 metric thread with 12mm length under head for compact fastening
• Grade 12.9 alloy steel construction rated at 38-43 HRC hardness
• 4mm hex socket drive for torque-controlled installation in tight spaces
• Black oxide coating provides mild corrosion resistance and low-glare finish
• Fully threaded shank conforms to ISO 7380 and ANSI/ASME B18.3.4M standards
• Right-hand thread direction, 4G and 6G thread fit class rated

Compatibility

Designed as an OEM-style replacement or standard metric fastener for machinery, equipment assemblies, and structural components requiring an M6x1 button socket cap screw to ISO 7380 and ANSI/ASME B18.3.4M specifications.

Installation Notes

Installation is performed by machinists, maintenance technicians, or assemblers using a 4mm hex key or socket driver. Confirm mating thread class compatibility before installation. Always ensure the fastener hole is clean and threads are free of debris before driving the screw. Do not exceed the rated torque capacity for grade 12.9 fasteners as specified by applicable machine or assembly standards.
