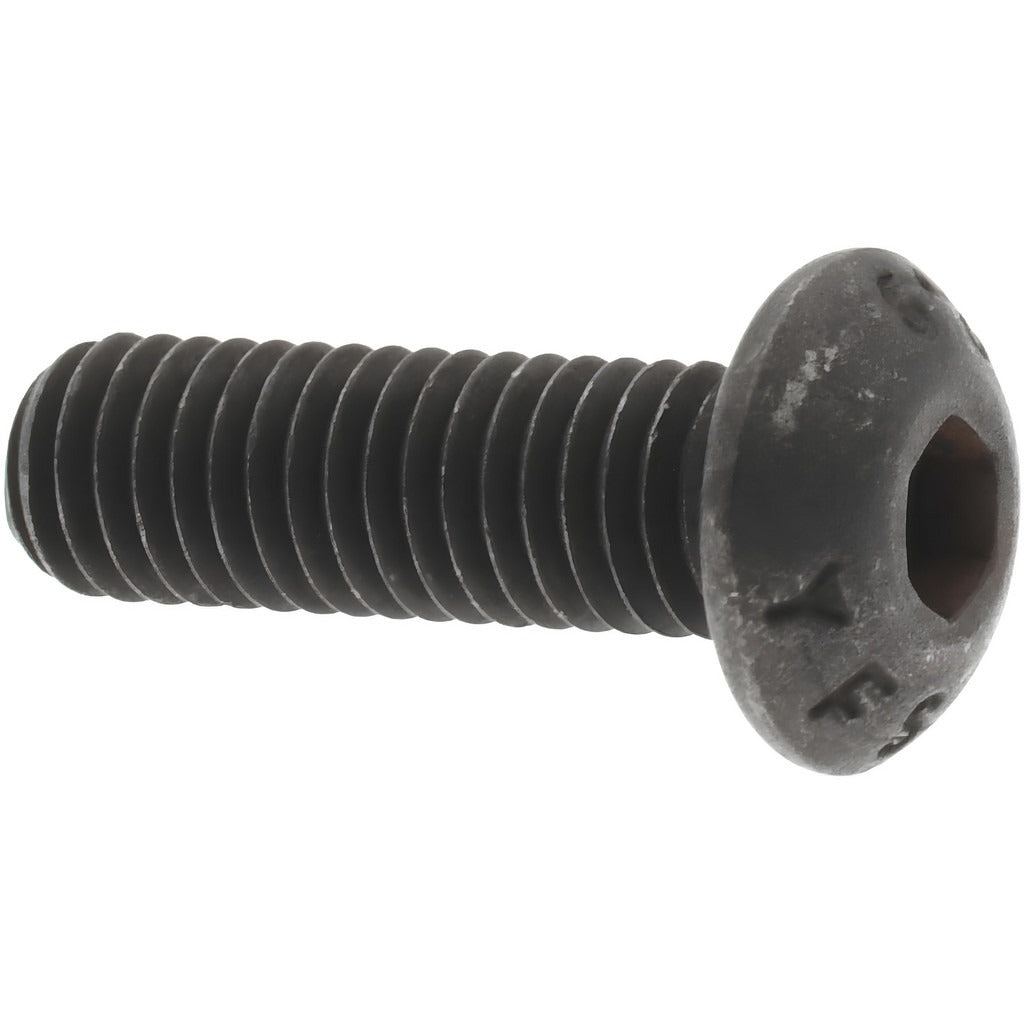

Value Collection 535054PR M5x0.8 Button Socket Cap Screw

Product Description

The VALUE COLLECTION 535054PR is a fully threaded button socket cap screw designed for metric fastening applications requiring a low-profile head and high tensile strength. Made from alloy steel with a black oxide finish, this screw meets ISO 7380 and ANSI/ASME B18.3.4M standards. It features an M5x0.8 thread, a 16mm length under head, and a grade 12.9 material rating with a hardness range of 38-43 HRC. The 3mm hex socket drive is engaged with a standard hex key. It is installed by maintenance technicians, millwrights, and equipment assemblers across light industrial and commercial applications.

This fastener is suited for machinery assembly, enclosure fabrication, and component mounting where a low-profile button head is preferred over a standard cap head. The black oxide coating provides mild corrosion resistance and a clean appearance on finished assemblies. The fully threaded shank and right-hand thread direction make it straightforward to install in standard metric threaded holes or with a matching nut. Sold individually with a minimum order quantity of 100 pieces.

Key Features

• Grade 12.9 alloy steel construction for high tensile load capacity
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• ISO 7380 and ANSI/ASME B18.3.4M compliant for standardized metric fastening
• Fully threaded with right-hand M5x0.8 thread and 4G/6G thread fit class
• Low-profile button head with 3mm hex socket drive
• 38-43 HRC hardness range for demanding clamping applications

Compatibility

Designed as an OEM-style replacement or direct-use metric fastener for machinery, enclosures, and assemblies requiring an ISO 7380 button socket cap screw in M5x0.8 thread size.

Installation Notes

Install with a 3mm hex key or hex bit driver torqued to the equipment manufacturer's specification for grade 12.9 M5 fasteners. Ensure the mating thread is clean and free of debris before driving. Do not exceed the rated hardness limits by applying impact tools without proper torque control. This fastener class is typically installed by qualified millwrights or assemblers following applicable machinery safety standards.
