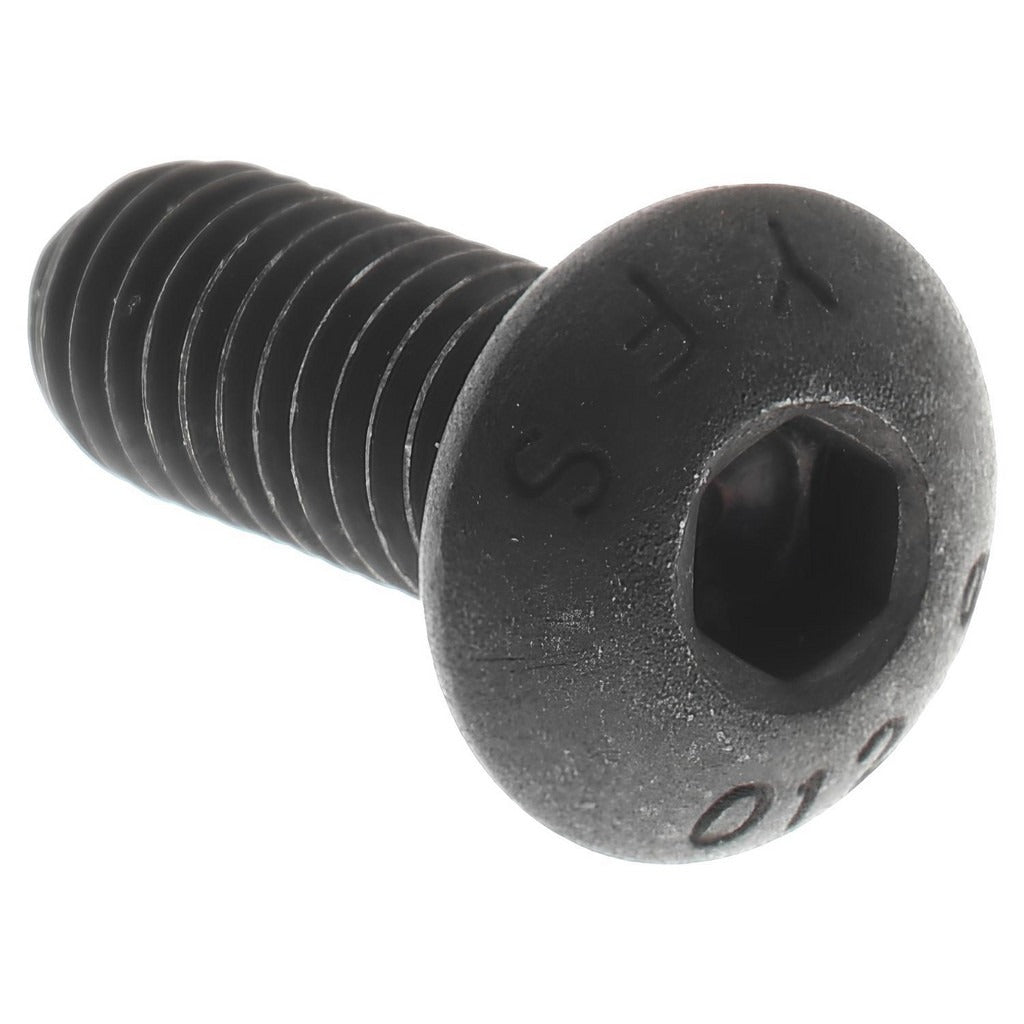

Value Collection 535024P M4x0.7 Button Socket Cap Screw

Product Description

The VALUE COLLECTION 535024P is an M4x0.7 button socket cap screw machined from alloy steel and finished with a black oxide coating. Rated at material grade 12.9, this fully threaded fastener delivers high tensile strength in a low-profile button head configuration. The 2.50 mm hex socket drive allows installation with a standard ball-end or straight hex key. With a hardness rating of 38-43 HRC, the 535024P is suited for high-stress mechanical assemblies where head clearance is limited and fastener integrity is critical. Licensed trades and industrial assemblers specify this type of fastener across a wide range of equipment and panel applications.

This fastener is used in residential and commercial mechanical assemblies where a low-profile head is required and a countersunk or hex cap head would create interference. Typical applications include equipment panels, brackets, motor mounts, and other structural sub-assemblies. The black oxide finish provides mild corrosion resistance and reduces light reflection in service environments. The metric thread standard and ISO 7380 conformance make this screw compatible with internationally toleranced components and hardware systems.

Key Features

• M4x0.7 fully threaded metric fastener per ANSI/ASME B18.3.4M and ISO 7380
• Alloy steel construction at material grade 12.9 for high tensile load capacity
• Hardness of 38-43 HRC for resistance to deformation under torque
• Black oxide finish for mild corrosion resistance and low-glare appearance
• 2.50 mm hex socket drive accepts standard ball-end hex keys
• Button head profile minimizes protrusion in clearance-critical assemblies

Compatibility

Designed as a standard M4x0.7 metric button socket cap screw conforming to ISO 7380 and ANSI/ASME B18.3.4M, suitable for use in any application accepting that thread standard and head type.

Installation Notes

Installation requires a 2.50 mm hex key or ball-end driver; ensure the drive tool is fully seated before applying torque to avoid rounding the socket. Power down or de-energize any equipment before fastening components inside electrical or mechanical enclosures. Follow applicable equipment manufacturer torque guidance for M4 grade 12.9 fasteners. Right-hand thread direction applies — turn clockwise to tighten.
