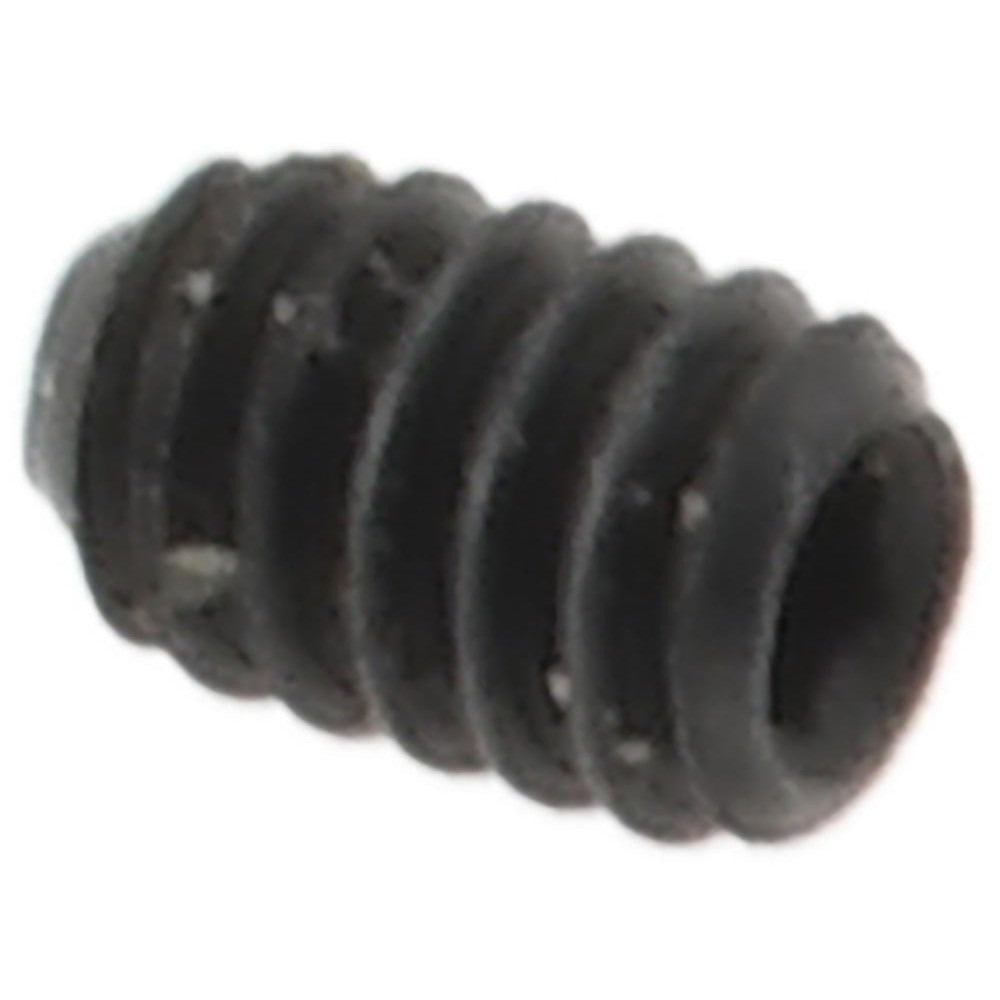

Value Collection 533246BR Set Screw M16x2 30mm Cup Point

Product Description

The VALUE COLLECTION 533246BR is an M16 x 2.00 x 30 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws are headless fasteners that thread fully into a tapped hole and bear directly against a mating surface to secure a component — such as a collar, pulley, gear, or hub — onto a shaft. The cup point concentrates clamping force at a small circular indent, providing firm holding power without requiring a separate nut. This screw meets DIN 916 standards and is driven with an 8 mm hex key. It is suited for mechanical assembly work in industrial, manufacturing, and maintenance environments.

This set screw is used in applications where a flush or recessed fastener is required and where the cup point can engage a shaft or soft material directly. Typical installations include securing shaft collars, sprockets, and couplings in rotating machinery. It is sized for M16 x 2.00 metric threads with an overall length of 30 mm. The DIN 916 standard ensures dimensional consistency for use with standard metric tapped holes. Mechanical assemblers, maintenance technicians, and machinists working with metric fastener systems will find this part dimensionally reliable for high-load clamping applications.

Key Features

• Cup point concentrates load for secure shaft engagement without permanent deformation of harder surfaces
• Alloy steel construction at Grade 14.9 (45H) delivers high tensile and proof load capacity
• DIN 916 standard ensures compatibility with standard metric hex key tooling and tapped hole dimensions
• 8 mm hex key drive for installation with common hex wrench or T-handle tools
• M16 x 2.00 metric thread with 30 mm overall length suits medium-to-large shaft collar and coupling applications

Compatibility

Designed for use in any application requiring a DIN 916 metric cup point set screw with M16 x 2.00 threading and a 30 mm overall length in a standard metric tapped hole.

Installation Notes

Installation requires an 8 mm hex key or Allen driver. Ensure the receiving component has a properly tapped M16 x 2.00 metric thread before installation. De-energize or lock out any rotating machinery before installing or adjusting set screws per applicable LOTO procedures. Do not exceed the rated drive torque for the fastener grade; use calibrated torque tooling where joint specifications require it.
