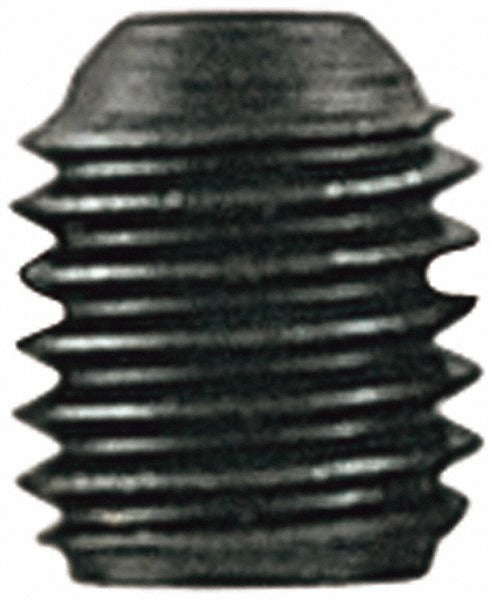

Value Collection 533244BR M16 Cup Point Set Screw Alloy Steel

Product Description

The VALUE COLLECTION 533244BR is an M16 x 2.00 x 25 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). It conforms to DIN 916, the standard governing hexagon socket set screws with cup point geometry. The cup point tip bites into the mating surface to resist rotation and axial movement under load. Drive is a hex socket requiring an 8 mm hex key. This fastener is suited for high-stress clamping applications where a recessed drive and a positive point hold are required. Machinists, millwrights, and maintenance technicians are the primary installers.

The 533244BR is used in mechanical assemblies where a set screw must lock a shaft, collar, or hub in place without a protruding head. Typical applications include shaft collars, shaft couplings, sprockets, pulleys, and similar rotating or sliding components in industrial and commercial machinery. The metric M16 x 2.00 thread and 25 mm overall length suit mid-to-large diameter shafts common in industrial drive trains and machine tool setups. The Grade 14.9 (45H) alloy steel construction handles the higher clamping loads these assemblies generate.

Key Features

• M16 x 2.00 metric thread, 25 mm overall length per DIN 916
• Cup point geometry bites into shaft surface for secure positive hold
• Grade 14.9 (45H) alloy steel for high tensile and torsional strength
• 8 mm hex socket drive allows installation in confined or recessed locations
• Headless profile sits flush or below surface to eliminate snagging hazards

Compatibility

Designed as a DIN 916-compliant metric hex socket cup point set screw suitable for shaft collars, couplings, pulleys, and similar M16-threaded mechanical assemblies requiring a Grade 14.9 fastener.

Installation Notes

Installation is performed by machinists or maintenance technicians using an 8 mm hex key or T-handle driver. Ensure the mating bore and threads are clean and free of debris before installation. Do not exceed the torque range appropriate for Grade 14.9 M16 fasteners as specified in your assembly documentation. Apply thread-locking compound or follow the OEM procedure if vibration resistance beyond the cup point hold is required.
