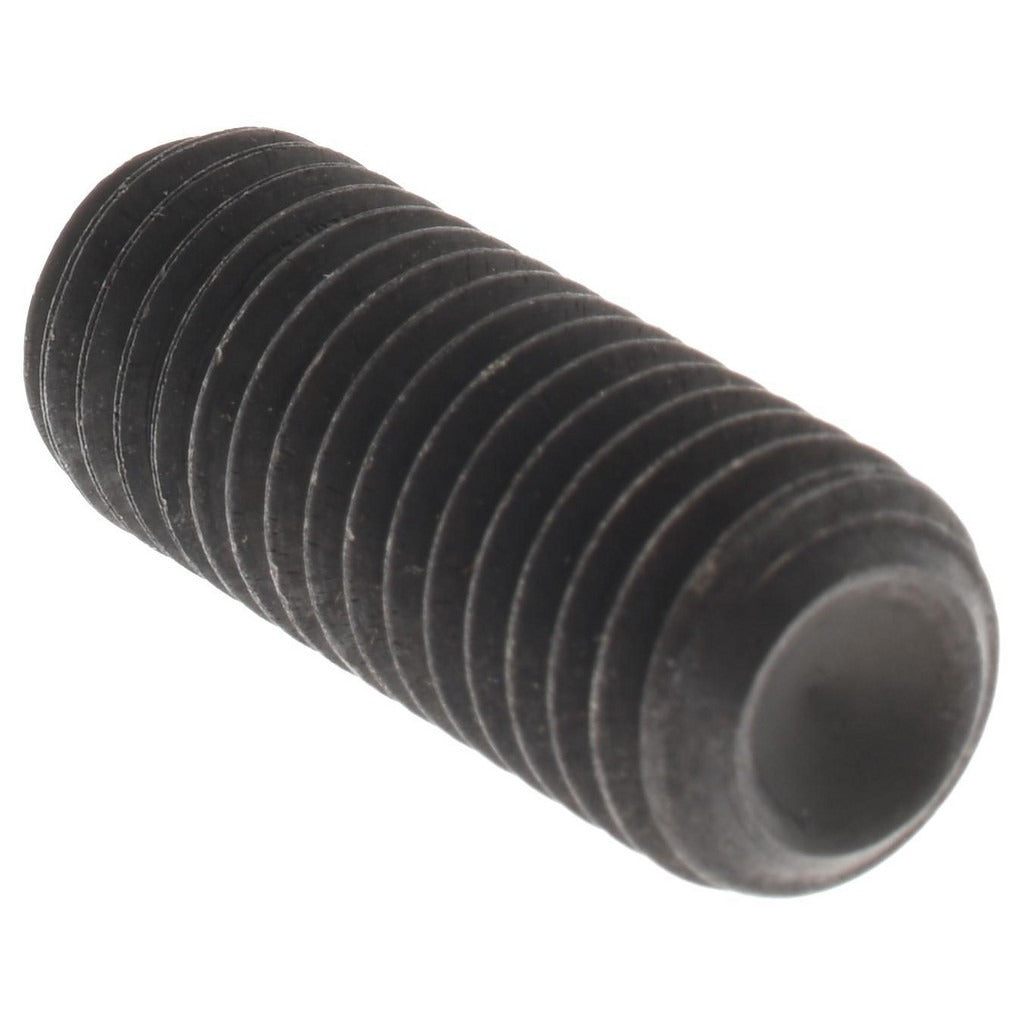

Value Collection 533196PR M12 Set Screw Cup Point Din 916

Product Description

The VALUE COLLECTION 533196PR is an M12 x 1.75 x 30 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). It conforms to DIN 916, the metric standard for hexagon socket set screws with cup point. The cup point geometry bites into the mating surface to resist rotation and axial movement under load. Drive is a 6 mm internal hex (Allen) socket. This fastener is used by machinists, millwrights, maintenance technicians, and mechanical assemblers who require a high-strength metric set screw for securing collars, gears, pulleys, and similar components to shafts.

This set screw is suited for industrial machinery, power transmission assemblies, and general mechanical fabrication where a flush or below-surface installation is required. The headless design allows the fastener to sit fully recessed within a tapped hole, making it appropriate for rotating assemblies or applications with tight clearance around the fastener head. Grade 14.9 (45H) alloy steel provides elevated proof load and tensile strength compared to standard-grade set screws.

Key Features

• Cup point tip creates a positive bite on shaft surfaces to resist slippage
• Grade 14.9 (45H) alloy steel for high proof load and tensile strength
• DIN 916 standard ensures dimensional and mechanical property consistency
• 6 mm hex socket drive compatible with standard hex keys and bit drivers
• Headless design allows full recessing in tapped holes for flush or rotating-assembly installations
• Metric thread M12 x 1.75 with 30 mm overall length

Compatibility

Designed as a DIN 916 metric hex socket cup point set screw for use in any tapped M12 x 1.75 hole requiring a Grade 14.9 alloy steel fastener. Minimum order quantity is 100 pieces.

Installation Notes

Installation is performed with a 6 mm hex key or hex bit driver torqued to the assembly specification for Grade 14.9 M12 fasteners per the applicable engineering standard. Verify the receiving hole is cleanly tapped to M12 x 1.75 before installation. De-energize or lock out any machinery before accessing shaft-mounted components. Avoid reusing set screws that show deformation at the cup point or socket drive, as damaged fasteners may not achieve rated clamp load.
