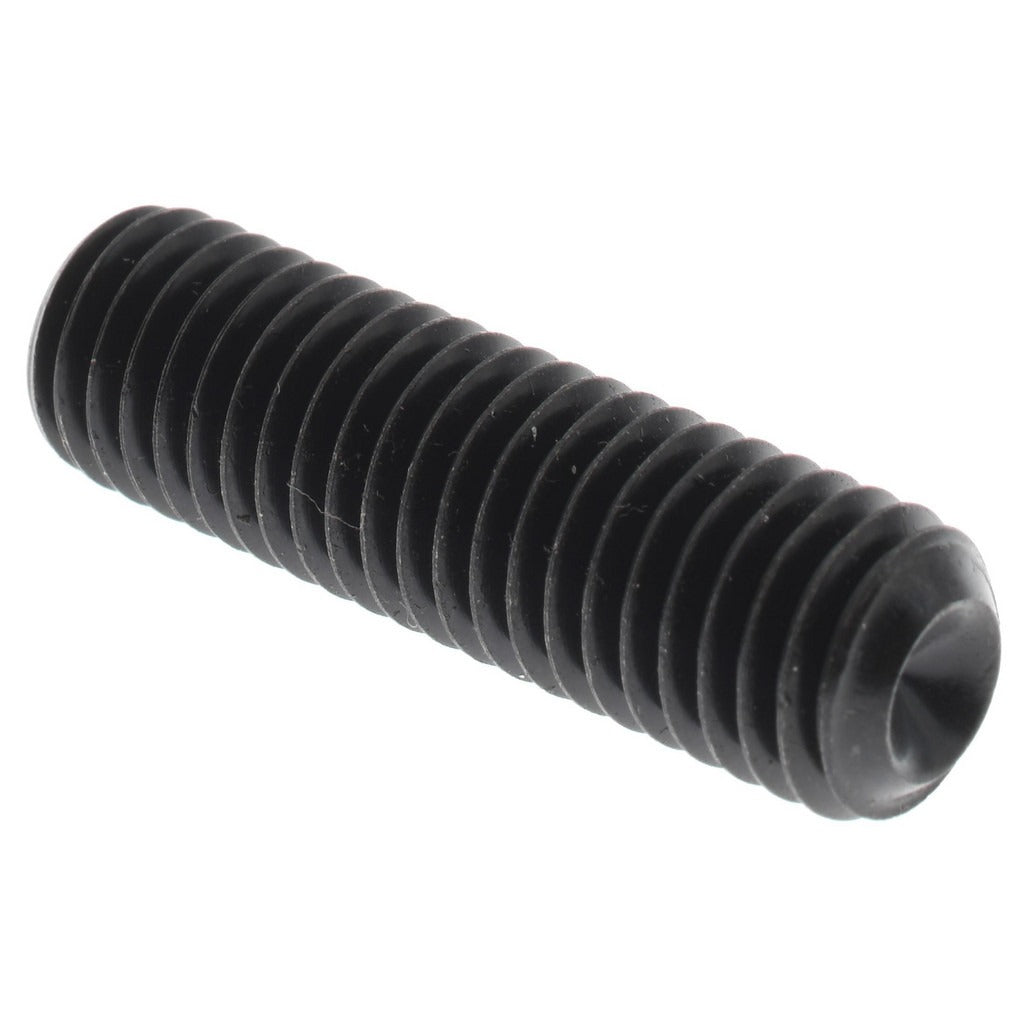

Value Collection 533154PS Set Screw M10 X 1.50

Product Description

The VALUE COLLECTION 533154PS is an M10 x 1.50 x 35 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws are headless fasteners that thread fully into a tapped hole and apply clamping or locking force against a shaft, hub, or mating surface. The cup point geometry bites into the mating surface for positive grip under vibration or torque loads. Driven by a 5 mm hex key, this fastener conforms to DIN 916 and is suited for mechanical assemblies where a flush or recessed fastener is required. Installation is performed by maintenance technicians, machinists, and mechanical tradespeople working on industrial or commercial equipment.

This set screw is used in shaft-to-hub connections, collar locking, and general mechanical clamping applications across industrial machinery, conveyor systems, motor drives, and similar equipment. The metric thread standard and DIN 916 designation make it compatible with metric-dimensioned components common in European and internationally sourced machinery. The 35 mm overall length provides sufficient thread engagement for medium-load applications in both light and heavy fabrication environments.

Key Features

• M10 x 1.50 metric thread for secure engagement in standard metric tapped holes
• Cup point geometry provides positive bite and grip on shaft or mating surface
• Alloy steel construction at Grade 14.9 (45H) for high tensile strength and durability
• 5 mm hex key drive for precise torque application in recessed or confined spaces
• Conforms to DIN 916 fastener standard for dimensional consistency
• 35 mm overall length suits medium thread-engagement requirements

Compatibility

Designed for use in any metric-tapped M10 x 1.50 hole requiring a DIN 916 cup point set screw. Suitable for shaft collars, shaft couplings, pulleys, and similar mechanical components with matching metric thread specifications.

Installation Notes

Installation is performed by machinists or mechanical technicians using a 5 mm hex key or hex driver. De-energize and lock out all equipment per applicable LOTO procedures before installing or removing set screws from rotating shafts or powered assemblies. Ensure the tapped hole is clean and free of debris before threading the fastener. Do not exceed the rated load capacity of the fastener grade when specifying for critical clamping applications.
