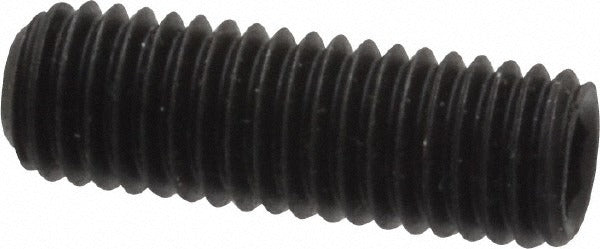

Value Collection 533152PS M10 X 1.50 X 30 Mm Cup Point Set Screw

Product Description

The VALUE COLLECTION 533152PS is a metric hex socket set screw designed for secure, no-protrusion fastening in mechanical assemblies. It features a cup point tip that bites into the mating surface to resist rotation and axial movement without the need for a protruding head. The screw is manufactured from alloy steel at Grade 14.9 (45H), indicating high tensile and hardness properties suitable for demanding clamping applications. Drive is via a 5 mm hex key socket. This fastener conforms to DIN 916, the internationally recognized standard for hexagon socket set screws with cup point. It is sized M10 x 1.50 mm thread pitch at 30 mm overall length.

This set screw is used in industrial, manufacturing, and maintenance applications where a flush or recessed fastener is required to lock shafts, collars, gears, pulleys, or hubs in position. The cup point style is appropriate for use against hardened or semi-hardened surfaces where a biting grip is needed. Machinists, millwrights, and maintenance technicians working with rotating assemblies or precision equipment are the primary installers. The metric thread standard makes this fastener well suited for equipment manufactured to European or international specifications.

Key Features

• Cup point tip provides positive bite into mating surface for strong rotational and axial hold
• Grade 14.9 (45H) alloy steel construction delivers high tensile strength and hardness
• DIN 916 standard compliance ensures dimensional consistency and interchangeability
• Hex socket drive accepts a 5 mm hex key for installation in confined or recessed locations
• Headless design allows flush or below-surface installation with no protrusion hazard
• Metric thread form (M10 x 1.50) suits internationally specified equipment

Compatibility

Designed as a DIN 916-compliant metric hex socket cup point set screw for use in any M10 x 1.50 mm threaded bore requiring a headless fastener with cup point contact.

Installation Notes

Installation is performed with a 5 mm hex key or hex bit driver. Ensure the threaded bore and screw threads are clean and free of debris before installation. Apply appropriate thread-locking compound if vibration loosening is a concern in the application. Torque to the equipment manufacturer's specification for M10 Grade 14.9 fasteners; do not estimate torque without a verified reference for this grade and size.
