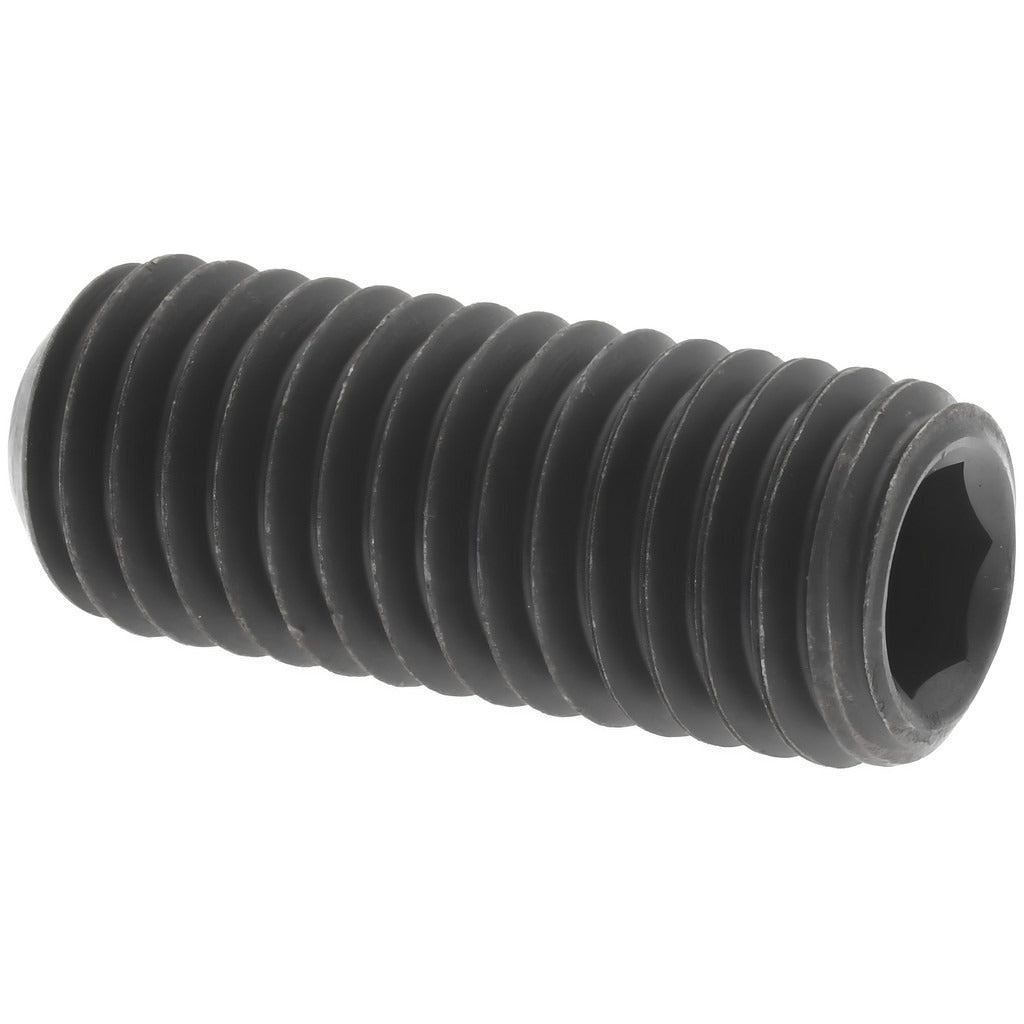

Value Collection 533150P Set Screw M10x1.5x25mm Cup Point

Product Description

The VALUE COLLECTION 533150P is a metric set screw engineered for secure shaft-to-hub and collar locking applications in industrial and mechanical assemblies. It features a cup point geometry that bites into the mating surface to resist rotational and axial movement under load. Manufactured from alloy steel to Grade 14.9 (45H), this fastener delivers high tensile and torsional strength. The 5 mm internal hex drive accepts a standard hex key for installation in tight or recessed locations. At M10 x 1.50 thread pitch and 25 mm overall length, it fits a wide range of medium-duty mechanical assemblies requiring a headless, flush-mount fastener solution.

This set screw is suited for use in rotating equipment, power transmission components, and precision machine assemblies where a headless fastener is required to sit flush with or below the surface. Typical applications include securing shaft collars, sprockets, pulleys, gears, and knobs to shafts. It is commonly installed by machinists, millwrights, and maintenance technicians working on industrial machinery, conveyor systems, and drive assemblies. Conformance to DIN 916 ensures dimensional consistency with other metric hardware in the same standard.

Key Features

• Cup point geometry digs into shaft surface for strong axial and rotational hold
• Alloy steel construction to Grade 14.9 (45H) for high tensile and torsional strength
• Headless design allows flush or sub-flush installation in collars, hubs, and housings
• 5 mm hex drive accepts standard hex key or hex bit driver
• Conforms to DIN 916 for dimensional interchangeability with other metric set screws
• M10 x 1.50 metric thread pitch with 25 mm overall length

Compatibility

Designed as a DIN 916 metric set screw for use in any M10 x 1.50 threaded bore requiring a cup point, headless fastener in alloy steel Grade 14.9 construction.

Installation Notes

Installation is performed with a 5 mm hex key or hex bit driver. De-energize and lock out any machinery before installing or removing set screws in rotating components, in accordance with applicable OSHA lockout/tagout procedures. Ensure the threaded bore is clean and free of debris before threading the screw in. Do not exceed the torque capacity of the hex key drive or the receiving material, particularly when working with softer shaft materials.
