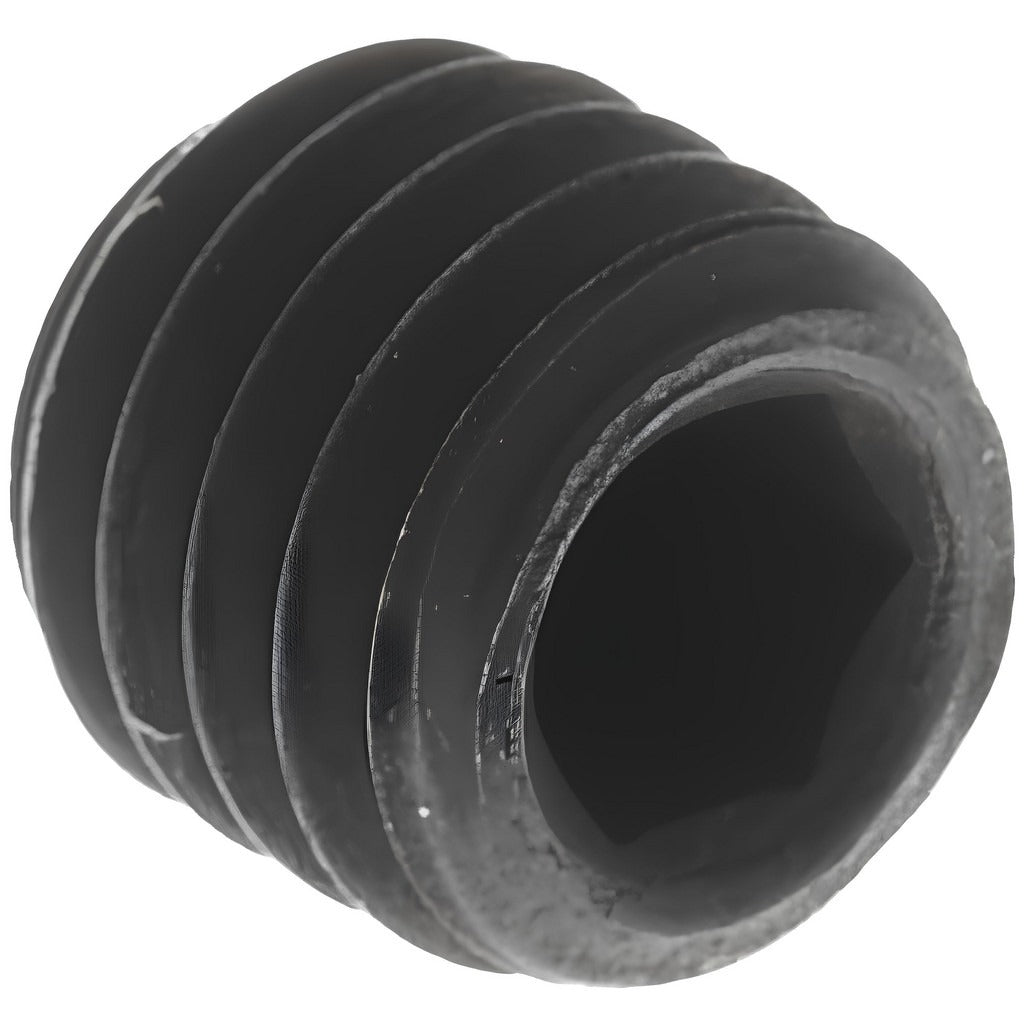

Value Collection 533044P M5 X 0.80 X 5 Mm Cup Point Set Screw

Product Description

The VALUE COLLECTION 533044P is an M5 x 0.80 x 5 mm cup point set screw manufactured from alloy steel to Grade 14.9 (45H). This headless fastener seats flush or below the surface of the mating part, with the cup point digging into the shaft or workpiece to resist rotation and axial movement. It is driven with a 2.5 mm hex key and conforms to DIN 916 dimensional standards. Typical applications include securing collars, pulleys, gears, and hubs on shafts in mechanical assemblies. The high-strength Grade 14.9 rating makes it appropriate for joints where significant clamping or holding force is required in a compact fastener footprint.

This set screw is used in general industrial, mechanical, and equipment maintenance applications where a metric M5 thread pitch of 0.80 and an overall length of 5 mm are specified. It is suited for light machinery, motion control components, and fabrication work where a cup point is preferred for positive shaft engagement. Technicians and machinists working to DIN or metric fastener standards will find this part directly interchangeable with other DIN 916 M5 x 0.80 x 5 mm cup point set screws.

Key Features

• Cup point geometry bites into shaft material for positive rotational and axial holding
• Grade 14.9 (45H) alloy steel construction provides high tensile and torsional strength
• M5 x 0.80 metric thread conforms to DIN 916 standard for broad interchangeability
• 2.5 mm hex key drive allows installation in tight or recessed locations
• Headless design sits flush or below surface, eliminating protrusion hazards
• Overall length of 5 mm suits shallow engagement applications and thin-walled components

Compatibility

Designed as a direct replacement or supplemental supply for any application specifying a DIN 916 M5 x 0.80 x 5 mm cup point set screw with a 2.5 mm hex drive.

Installation Notes

Installation is performed by machinists or maintenance technicians using a calibrated 2.5 mm hex key. Ensure the mating threaded hole is clean and free of debris before threading the screw in. Do not exceed the torque capacity appropriate for Grade 14.9 M5 fasteners as specified by your engineering documentation. De-energize or lock out any rotating equipment before servicing components secured by this fastener.
