Value Collection 5096MPF Flat Head Phillips Machine Screw

Product Description

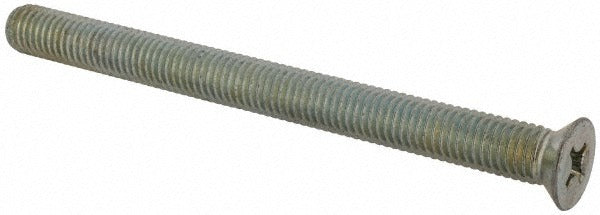

The VALUE COLLECTION 5096MPF is a 1/2-13 x 6 inch flat head Phillips machine screw manufactured from steel with a zinc finish. It features a unified coarse thread pitch of 1/2-13 and an overall length of 6 inches, measured from the top of the head to the end of the shank. The flat head profile allows the fastener to sit flush with or below the surface of the mating material. Manufactured to ASME B18.6.3 and SAE J82 standards, this screw is suited for structural and mechanical assembly work performed by maintenance technicians, millwrights, and general tradespeople.

This screw is used in general-purpose mechanical assemblies, equipment mounting, and structural fastening applications where a flush or countersunk head profile is required. The zinc finish provides basic corrosion resistance suitable for indoor and light-duty outdoor use. The coarse 1/2-13 thread engages quickly and resists cross-threading in typical steel-to-steel or steel-to-aluminum assemblies. It ships in a package quantity of one piece, with a minimum order quantity of two pieces.

Key Features

• Flat head profile for flush or countersunk installations
• Phillips drive for compatibility with standard power and hand drivers
• 1/2-13 unified coarse thread for fast engagement
• Steel construction with zinc finish for corrosion resistance
• Meets ASME B18.6.3 and SAE J82 standards
• Overall length of 6 inches with no washer face

Compatibility

Designed as a standard 1/2-13 coarse-thread machine screw for use in any application requiring an ASME B18.6.3 flat head Phillips fastener in that thread size and length.

Installation Notes

Installation should be performed with a properly sized Phillips driver bit to avoid cam-out on this large-diameter fastener. Ensure the mating hole is correctly countersunk to the flat head angle before driving. Apply appropriate torque using a calibrated torque wrench or driver to avoid stripping the thread or distorting the head. Follow applicable mechanical and structural codes for fastener selection and torque requirements in your specific application.
