Value Collection 4BN3/8X51/2 Ss Pipe Nipple Sch 40 Npt

Product Description

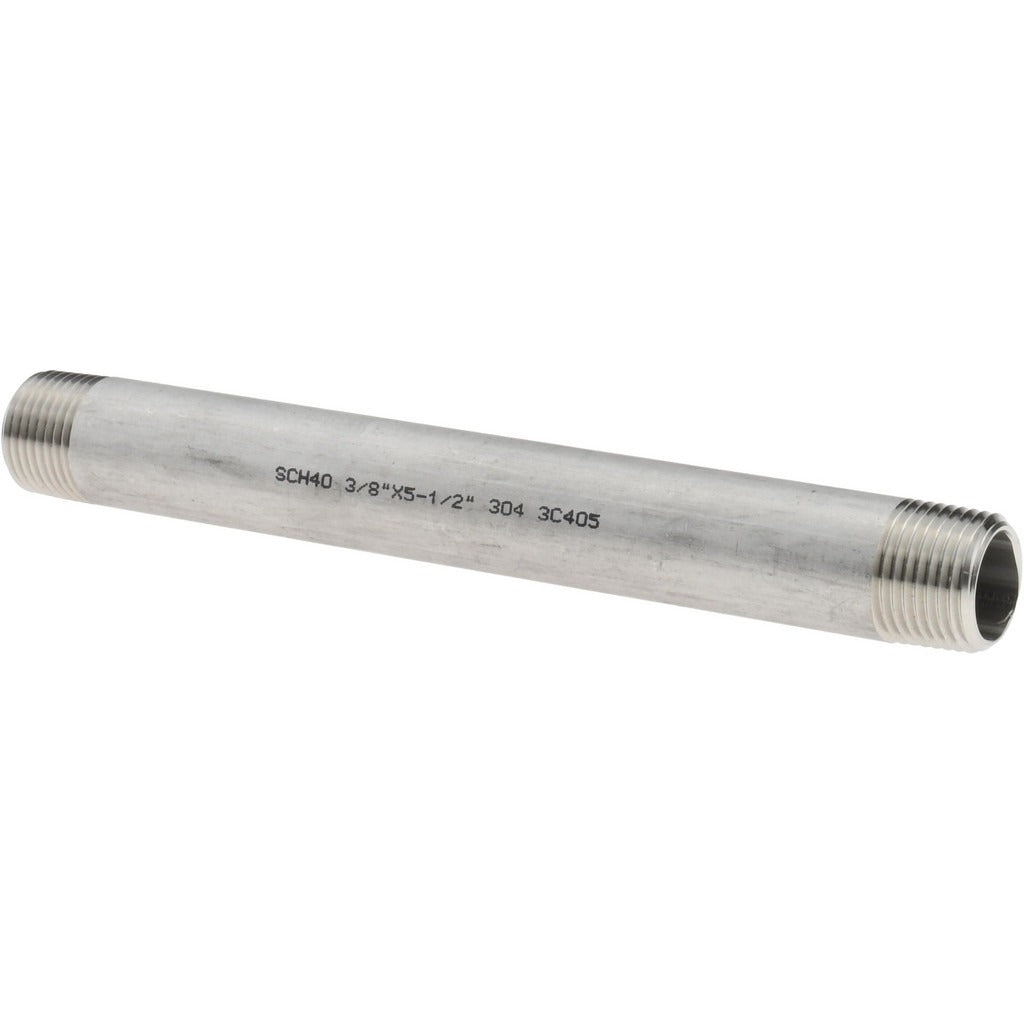

The VALUE COLLECTION 4BN3/8X51/2 is a stainless steel pipe nipple manufactured to Schedule 40 wall thickness with NPT (National Pipe Taper) threads on both ends. Pipe nipples connect two threaded fittings or extend a threaded run in a piping system. This nipple measures approximately 3/8 inch nominal pipe size at 5.5 inches in overall length and weighs 0.12 pounds. The Schedule 40 wall rating and stainless steel construction make it suitable for a range of fluid and gas transfer applications where corrosion resistance is required. Licensed plumbers and pipefitters are the primary installers in both commercial and residential settings.

This pipe nipple is used in plumbing, HVAC, and industrial piping systems where a short threaded extension or coupling connection is needed. Its NPT threading conforms to standard taper thread specifications, allowing it to mate with any NPT-compatible fitting, valve, or port. The 3/8 inch nominal size fits common branch lines, instrumentation connections, and low-flow service runs. Stainless steel construction makes this nipple a practical choice in environments prone to moisture, mild chemical exposure, or elevated temperatures.

Key Features

• Schedule 40 wall thickness for standard-pressure service
• NPT threads on both ends for compatibility with standard threaded fittings
• Stainless steel construction for corrosion resistance
• 3/8 inch nominal pipe size suits branch lines and instrumentation ports
• 5.5 inch overall length for short extensions and close nipple runs
• Lightweight at 0.12 pounds for easy single-hand handling during installation

Compatibility

Designed as a standard replacement or new-installation threaded nipple for any NPT-threaded piping system requiring 3/8 inch Schedule 40 stainless steel pipe nipples.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and ASME B1.20.1 NPT thread standards. Shut off and depressurize the line completely before removing or installing any threaded fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before making up the joint. Do not over-tighten stainless steel fittings, as galling of the threads can occur.
