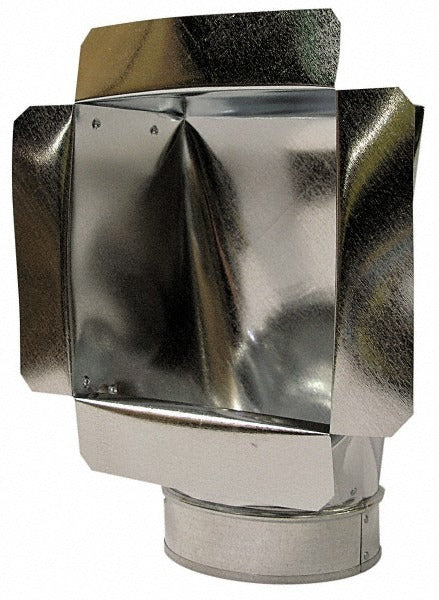

Value Collection 47110101 Galvanized Duct Side Ceiling Box 8 in

Product Description

The VALUE COLLECTION 47110101 is a galvanized steel side ceiling box designed for use in sheet metal ductwork systems. It connects round duct runs to ceiling diffusers or registers at an 8-inch inside diameter and fits into a 10-inch by 10-inch ceiling opening. Fabricated from galvanized steel at standard gauge, this fitting resists corrosion in typical residential and light commercial air distribution environments. HVAC installers use it where a round duct collar must transition into a ceiling-mounted outlet from a side-entry configuration. At 2.82 pounds, it is easy to handle during overhead installation work.

This side ceiling box suits residential and light commercial forced-air systems where supply ductwork runs horizontally and terminates at a ceiling register or diffuser. The 8-inch ID collar accepts standard 8-inch round duct or spiral pipe. The 10-inch by 10-inch face plate is sized to accommodate common ceiling register footprints in that duct size range. Sheet metal contractors and HVAC technicians install this fitting during new construction roughin and during duct replacement or retrofit projects.

Key Features

• 8-inch inside diameter collar accepts standard 8-inch round duct and spiral pipe
• 10-inch wide by 10-inch long face fits common ceiling register and diffuser openings
• 9-inch overall height provides clearance for typical joist-bay installations
• Galvanized steel construction resists corrosion in conditioned-space duct systems
• Standard gauge sheet metal fabrication meets typical residential and light commercial requirements
• Ships as a single unit with a minimum order quantity of one

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial forced-air duct systems using 8-inch round duct connections at ceiling outlets.

Installation Notes

A licensed sheet metal contractor or HVAC technician should install this fitting in accordance with SMACNA duct construction standards and applicable local mechanical codes. Shut down the air-handling unit and isolate the supply duct run before cutting into existing ductwork or securing the collar. Use sheet metal screws and UL 181-listed duct tape or mastic sealant at all joints to maintain system integrity and prevent air leakage. Work from a stable ladder or scaffold when making overhead connections inside ceiling cavities.
