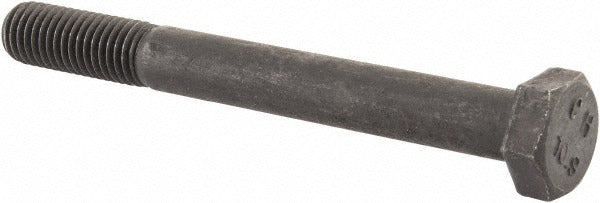

Value Collection 461205PR Hex Cap Screw M12x1.75x110mm Gr10.9

Product Description

The VALUE COLLECTION 461205PR is a metric hex head cap screw designed for high-strength fastening applications in mechanical, structural, and industrial assemblies. Manufactured from Grade 10.9 steel with a bright uncoated finish, this screw delivers high tensile strength suitable for demanding bolted connections. It follows a partial threading configuration per DIN 931 and ISO 4014 standards, with a 19 mm hex drive size. The M12 x 1.75 thread profile and 110 mm length under head make it a standard choice where metric fasteners with shoulder clearance are required. Installation is performed by mechanics, millwrights, and maintenance technicians working with metric-spec equipment.

This cap screw is suited for use in general industrial machinery, equipment frames, structural steel connections, and heavy fabrication work where metric thread standards apply. The partial threading design provides a shank section between the head and threads, which is important in applications requiring precise alignment or where the fastener passes through a clearance hole before engaging a tapped bore. This part is sold individually, with a minimum order quantity of 25 pieces per order.

Key Features

• Grade 10.9 steel construction for high tensile and proof load strength
• M12 x 1.75 metric thread with 110 mm length under head
• Partially threaded per DIN 931 and ISO 4014 standards
• 19 mm hex drive size for standard wrench and socket tooling
• Bright uncoated finish — suitable for use where secondary coating will be applied or corrosion environment is controlled
• Consistent metric thread standard for interchangeability with ISO 4014-compliant hardware

Compatibility

Designed for use in metric-threaded assemblies requiring a partially threaded hex head cap screw per DIN 931 and ISO 4014 specifications with an M12 x 1.75 thread form.

Installation Notes

This fastener is installed by mechanics, millwrights, or maintenance technicians using a standard 19 mm wrench or socket. De-energize and lock out all equipment before disassembling or reassembling bolted joints. Follow applicable torque specifications from the equipment manufacturer or relevant structural standards for Grade 10.9 fasteners — do not estimate torque by feel alone. Inspect threads for damage before installation and ensure the mating tapped hole conforms to the M12 x 1.75 metric thread standard.
