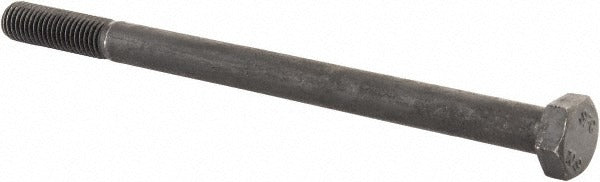

Value Collection 461203PS Hex Head Cap Screw M12x1.75x180mm

Product Description

The VALUE COLLECTION 461203PS is a metric hex head cap screw designed for bolted connections that require high tensile strength and precise thread engagement. This partially threaded fastener follows DIN 931 and ISO 4014 standards, making it a reliable choice for structural and mechanical assemblies. The screw is manufactured from Grade 10.9 steel, indicating a minimum tensile strength appropriate for heavy-duty clamping and load-bearing applications. The uncoated, bright finish leaves the base steel exposed, which is suited for applications where coating clearances are controlled or where secondary finishing is applied after assembly. A 19 mm hex drive allows installation with standard metric tooling.

This fastener is used in industrial machinery, structural steel fabrication, heavy equipment assembly, and mechanical maintenance applications where metric fastening systems are specified. The M12 x 1.75 thread pitch and 180 mm length under head make it appropriate for through-bolting thicker material sections or where longer grip lengths are required. Trade mechanics, millwrights, and maintenance technicians typically work with this size in both new construction and repair contexts. The partial threading provides an unthreaded shank section that resists shear forces in bearing-load joints.

Key Features

• Grade 10.9 steel construction for high-tensile, heavy-duty bolted connections
• Partially threaded shank provides shear resistance in bearing-load joints
• Conforms to DIN 931 and ISO 4014 dimensional standards
• M12 x 1.75 thread size with 180 mm length under head for longer grip applications
• 19 mm hex drive compatible with standard metric wrenches and sockets
• Bright uncoated finish for applications with controlled coating requirements

Compatibility

Designed as a standard metric hex head cap screw per DIN 931 and ISO 4014, compatible with M12 x 1.75 metric nuts and tapped holes in any application specifying those standards.

Installation Notes

Installation should be performed by qualified mechanics or technicians familiar with metric fastener torque specifications and joint design requirements. Always verify that the mating nut or tapped hole matches the M12 x 1.75 thread specification before installation. Grade 10.9 fasteners require torque values appropriate to their property class and lubrication condition — consult applicable engineering or equipment specifications before final tightening. Inspect threads for damage before use and do not reuse fasteners that have been stretched or overtorqued.
