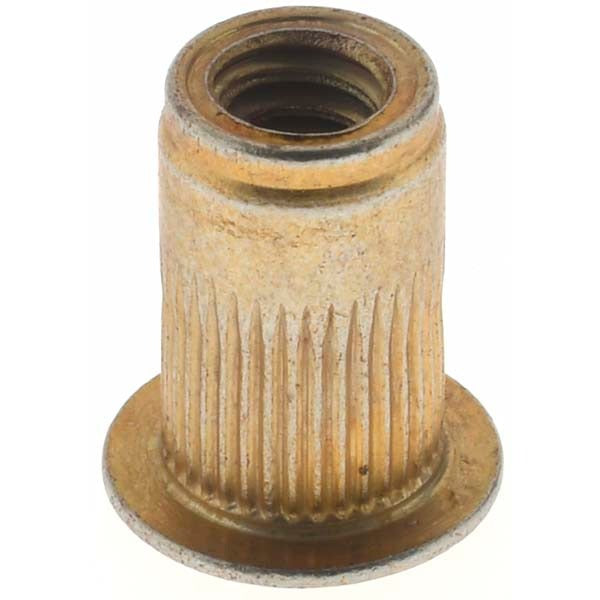

Value Collection 45202 Threaded Insert 10-24 Pack of 100

Product Description

The VALUE COLLECTION 45202 is a knurled body open end threaded insert designed for permanent installation into pre-drilled holes in thin sheet metal, plastics, or composite panels. The knurled exterior locks into the host material as the insert is driven or pressed in, creating a durable internal thread that accepts a 10-24 machine screw. With an overall length of 0.475 inches and an insert diameter of 0.296 inches, this insert is suited for applications where a reliable threaded connection is needed in materials that cannot hold a tapped thread on their own. The 1008/1010 steel construction with a clear protective zinc yellow dichromate finish provides corrosion resistance for general industrial environments. Sold in a pack of 100.

This threaded insert is used across light manufacturing, panel assembly, electronics enclosures, HVAC equipment fabrication, and electrical panel construction wherever a 10-24 internal thread must be added to sheet stock or thin structural members. A hole diameter of 0.2969 inches is required for proper installation. The open end design allows the fastener to pass fully through the insert when needed. Grip range runs from 0.02 to 0.13 inches, covering a variety of material thicknesses common in trade and light industrial assembly work.

Key Features

• 10-24 internal thread for compatibility with standard machine screws
• Knurled body locks into host material for pull-out resistance
• Open end design allows full fastener passthrough
• 1008/1010 steel construction with zinc yellow dichromate finish for corrosion protection
• Grip range of 0.02 to 0.13 inches suits a range of material thicknesses
• Pack of 100 for production and service use

Compatibility

Designed as an OEM-style replacement or standard production insert for applications requiring a 10-24 threaded connection in thin sheet metal, plastic, or composite panels with a 0.2969 inch installation hole.

Installation Notes

Installation is typically performed using a hand or pneumatic insert installation tool sized for the 0.2969 inch required hole diameter. Drill or punch the hole to the specified diameter before driving the insert to avoid stripping the knurl or damaging the host material. Ensure the host panel is fully supported during installation to prevent deformation. No welding or thread-forming tools are required for standard installation.
