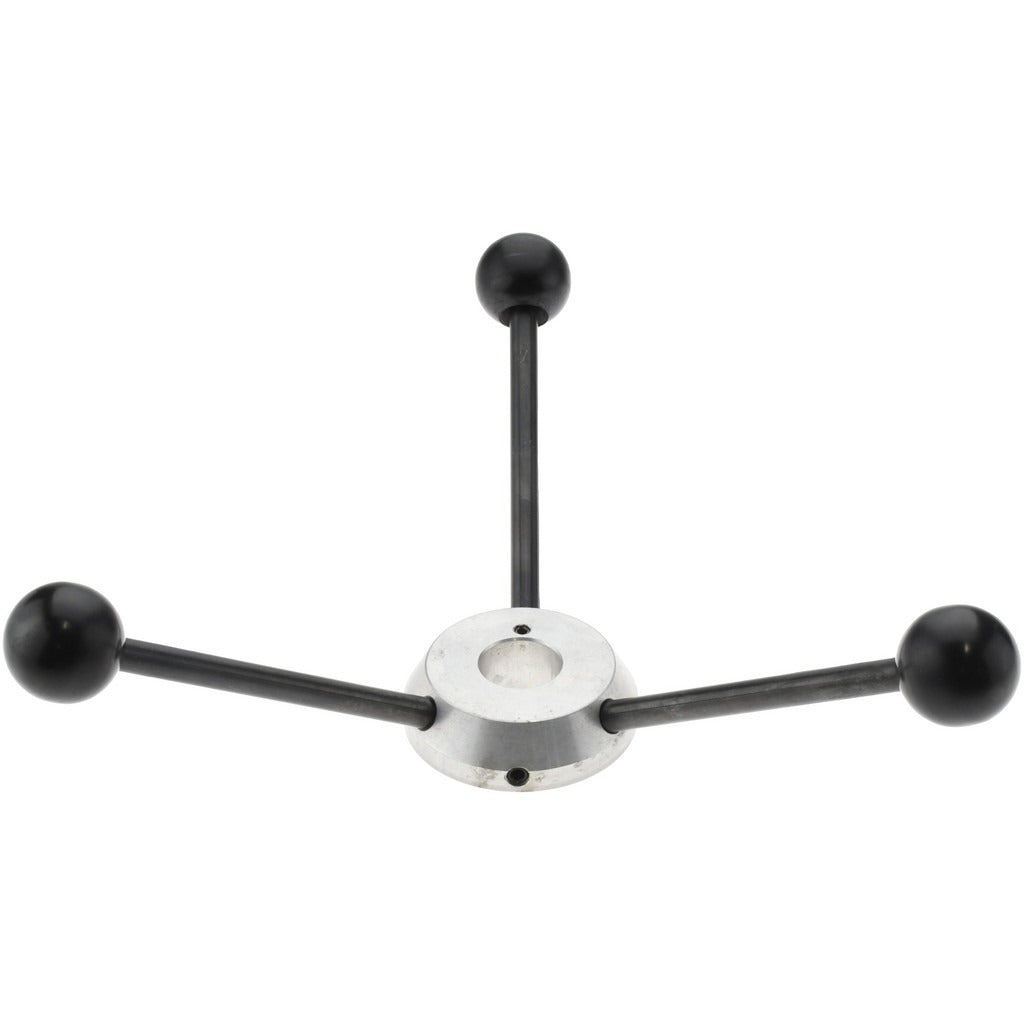

Value Collection 428-9707 Spider Handle Bridgeport Heads

Product Description

The VALUE COLLECTION 428-9707 is a spider handle designed for use with Bridgeport milling machine heads. Spider handles provide the mechanical grip point used to rotate and adjust the quill or spindle assembly on vertical milling machines. This handle installs in the bore of the head assembly and gives the operator the leverage needed to make precise manual adjustments. With a 1-inch bore size and 1-inch overall length, this is a direct-fit accessory for standard Bridgeport-style heads. Machinists, tool-and-die technicians, and machine shop maintenance personnel are the primary installers. The part weighs 1.5 pounds.

This spider handle is suited for use on Bridgeport milling machine heads in job shop, production, and maintenance environments. It serves as a replacement or spare accessory for shops running Bridgeport-style vertical mills where the original handle has worn, stripped, or gone missing. The compact 1-inch overall length makes it appropriate for standard head configurations without clearance concerns. Typical applications include manual quill operation and head adjustment tasks on knee mills.

Key Features

• 1-inch bore size for direct fit on standard Bridgeport-style head assemblies
• 1-inch overall length suits compact head configurations
• Functions as a replacement or spare for worn or missing OEM handles
• Lightweight at 1.5 pounds for easy handling during installation and adjustment
• Sold individually — single-unit packaging suitable for one-off replacements

Compatibility

Designed for use with Bridgeport milling machine heads as a direct-fit spider handle accessory.

Installation Notes

Installation is performed by qualified machinists or machine maintenance technicians. Power down and lock out the milling machine before removing or installing any head components. Verify the bore size of the existing head assembly matches the 1-inch bore of this handle before installation. Follow the machine manufacturer's service documentation for proper seating and fastener procedures.
