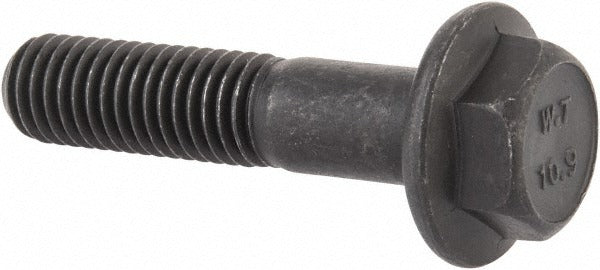

Value Collection 427525MSC Flange Bolt M10 X 1.5 45mm

Product Description

The VALUE COLLECTION 427525MSC is a smooth flange bolt engineered for metric fastening applications requiring high clamping strength and load distribution. Built from Grade 10.9 alloy steel with a phosphate and oil finish, this bolt resists corrosion and handles high-stress joint conditions. The M10 x 1.5 thread pitch and 45 mm length under head make it well suited for medium-duty structural and mechanical assemblies. The integral smooth flange measures 22.3 mm in diameter and distributes clamping load across the bearing surface without requiring a separate washer. Partially threaded at 35 mm of thread length, the shank provides a consistent grip zone in the joint.

This flange bolt is used in automotive, industrial equipment, and general mechanical assembly applications where metric hardware is specified. The hex drive accepts a 14.73 to 15 mm drive socket or wrench. It conforms to DIN 6921 and DIN ISO 898-1 standards, making it appropriate for applications specifying those fastener standards. Maintenance technicians, assembly mechanics, and industrial tradespeople typically install this fastener in production or service environments.

Key Features

• Grade 10.9 alloy steel construction for high tensile strength in demanding applications
• Integral smooth flange at 22.3 mm diameter eliminates the need for a separate flat washer
• Partially threaded shank with 35 mm thread length provides a defined grip zone
• Phosphate and oil finish provides baseline corrosion resistance
• Conforms to DIN 6921 and DIN ISO 898-1 fastener standards
• Hex drive with 14.73 to 15 mm drive size accepts standard metric sockets

Compatibility

Designed as a metric replacement or service fastener for assemblies specifying an M10 x 1.5, 45 mm partially threaded smooth flange bolt to DIN 6921 standards.

Installation Notes

Installation should be performed by a qualified mechanic or assembly technician familiar with metric fastener specifications and torque requirements for Grade 10.9 hardware. Verify thread engagement depth and joint design before installation. Always confirm the mating thread is M10 x 1.5 metric and that the flange bearing surface is clean and flat. Do not substitute this Grade 10.9 fastener in joints specified for lower-grade hardware without engineering review.
