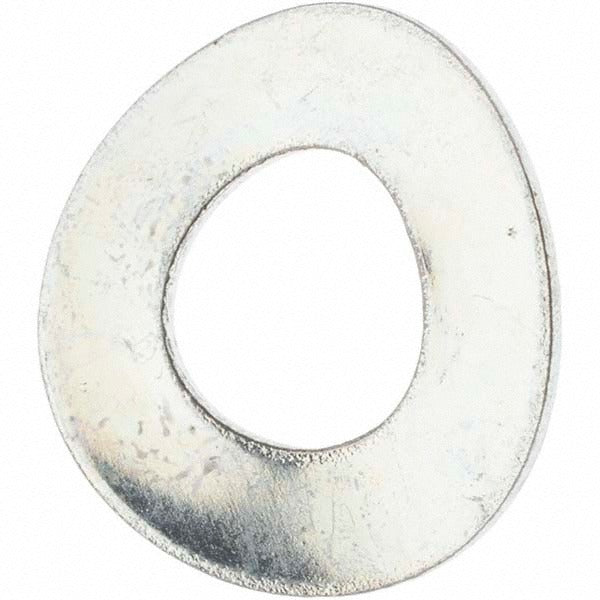

Value Collection 42471 Wave Disc Spring M5 Spring Steel

Product Description

The VALUE COLLECTION 42471 is a metric wave disc spring manufactured from spring steel. Wave disc springs provide axial load and deflection in compact assemblies where space is limited. This spring measures 5.3 mm inside diameter, 11 mm outside diameter, and 2.2 mm overall height with a 0.5 mm thickness. It is sized for M5 screw applications. Machinists, maintenance technicians, and assembly professionals install wave disc springs in mechanical and electromechanical assemblies across industrial, HVAC, and general trade applications where precise preload or vibration dampening is required in tight axial spaces.

This wave disc spring suits M5 fastener applications in mechanical assemblies requiring a low-profile spring element. Typical use cases include bearing preload applications, gearbox assemblies, valve mechanisms, and fastener locking arrangements. The metric dimensioning makes it compatible with metric-standard assemblies common in imported equipment, European-specification HVAC components, and precision mechanical devices. This part is sold individually with a minimum order quantity of 1 unit and is available in package quantities of 200.

Key Features

• Spring steel construction for consistent elasticity and fatigue resistance under cyclic loading
• Wave disc profile delivers axial preload in minimal stack height
• Sized for M5 screw applications with 5.3 mm inside diameter
• Metric dimensioning suits European and imported equipment specifications
• 0.5 mm thickness allows use in tight axial clearance conditions
• Available in package quantities of 200 for stocking and bulk repair use

Compatibility

Designed as a metric wave disc spring for M5 fastener assemblies requiring a 5.3 mm inside diameter, 11 mm outside diameter, and 2.2 mm overall height spring element.

Installation Notes

Wave disc springs are installed by mechanical technicians and assembly professionals as part of fastener or bearing preload assemblies. Ensure the mating bore and shaft dimensions match the spring outside and inside diameters before installation. Do not exceed the rated deflection range, as over-compressing a disc spring can cause permanent set or fracture. Follow the equipment manufacturer's assembly sequence when stacking or orienting multiple wave disc springs.
