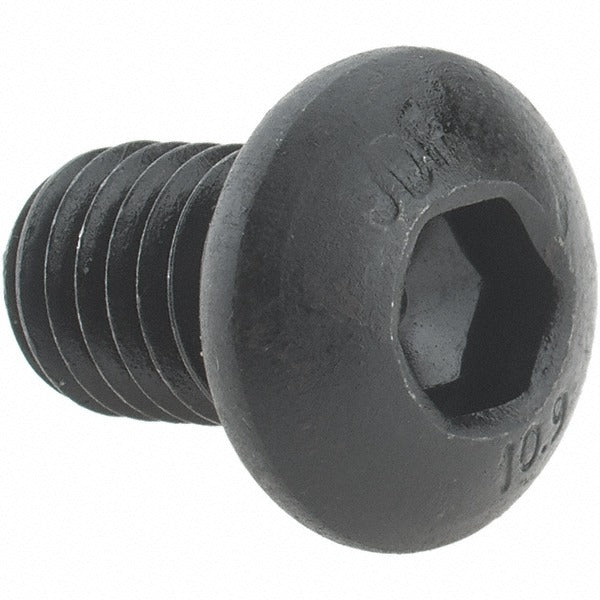

Value Collection 41936 M8x1.25 Button Socket Cap Screw

Product Description

The VALUE COLLECTION 41936 is a fully threaded M8x1.25 button socket cap screw designed for secure fastening in tight-clearance applications where a low-profile head is required. Manufactured from Grade 10.9 alloy steel with a black oxide finish, this screw delivers high tensile strength and moderate corrosion resistance. The 5mm hex socket drive accepts a standard hex key for installation and removal. With a 12mm length under head, this metric fastener conforms to ISO 7380 standards. Machinists, maintenance technicians, and fabricators working with metric assemblies will find this screw suited to structural and mechanical fastening tasks where head height is a design constraint.

This fastener is appropriate for use in general industrial, mechanical, and equipment assembly applications requiring metric hardware. The button head profile keeps the fastener sitting low against the mating surface, making it a practical choice in panels, brackets, and machine guards where a traditional hex cap screw head would interfere with adjacent components or covers. Right-hand thread direction and a 4G/6G thread fit class ensure consistent engagement with standard metric tapped holes.

Key Features

• M8x1.25 metric thread with right-hand direction and ISO 7380 fastener standard
• Grade 10.9 alloy steel construction for high tensile strength
• Black oxide finish provides a dark appearance and mild corrosion resistance
• Button head profile reduces overall installed height in clearance-sensitive assemblies
• 5mm hex socket drive compatible with standard hex keys and socket tools
• Fully threaded along the 12mm length under head for maximum thread engagement

Compatibility

Designed as an ISO 7380-compliant M8x1.25 metric fastener compatible with standard metric tapped holes using a 4G or 6G thread fit class.

Installation Notes

Installation is performed with a 5mm hex key or hex socket driver. Ensure the mating tapped hole meets M8x1.25 metric thread specifications before installation. Power down and de-energize any equipment before replacing or installing fasteners in live assemblies. Do not exceed the rated torque for Grade 10.9 M8 fasteners as specified by the equipment manufacturer or applicable mechanical standards.
