Value Collection 418-4335 Cast Iron Machined Angle Plate

Product Description

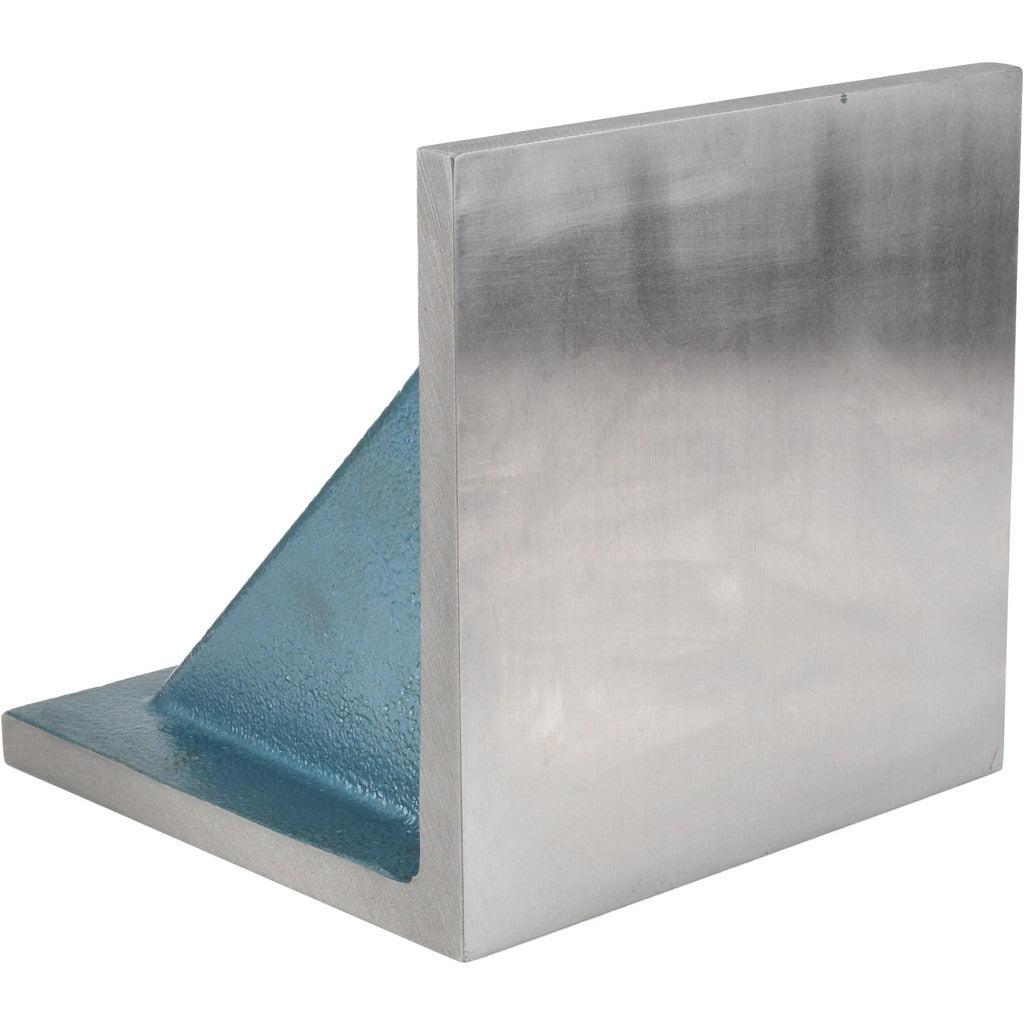

The VALUE COLLECTION 418-4335 is a machined cast iron angle plate used for precision workholding, layout, and inspection tasks in machine shops and metalworking environments. It features a flat plate surface, double web construction, and a standard single-plate design. The plate measures 8 inches wide, 8 inches deep, and 8 inches high, and weighs 36 pounds. Parallelism is held to 0.005 inches and squareness to 0.0036 inches, making it suitable for setups that require reliable right-angle reference surfaces. Machinists, toolmakers, and quality technicians are the primary users.

This angle plate is used in machine shops, toolrooms, and inspection areas where a stable, square reference surface is needed. Common applications include clamping workpieces to milling machine tables, setting up parts for boring operations, and performing layout and inspection work on surface plates. The standard flat surface and double web design provide rigidity under clamping loads without excessive mass, making it a practical general-purpose choice for both production and toolroom environments.

Key Features

• Flat plate surface provides a reliable right-angle reference for machining and inspection setups
• Double web construction adds rigidity and resistance to deflection under clamping loads
• Machined cast iron construction for dimensional stability and wear resistance
• Parallelism of 0.005 inches supports accurate workholding and layout tasks
• Squareness of 0.0036 inches meets typical toolroom and inspection requirements
• Single-plate format for straightforward setups without the coordination required by matched pairs

Compatibility

Designed as a general-purpose machined angle plate for use on milling machine tables, surface plates, and similar flat reference surfaces in machine shop and toolroom applications.

Installation Notes

Setup and positioning should be performed by a qualified machinist or toolmaker familiar with workholding practices. Clean the mounting surface and the plate base thoroughly before placing the plate to ensure full contact and accurate registration. Secure the plate using appropriate T-slot hardware or strap clamps rated for the workpiece load. Verify squareness with a dial indicator before committing to a machining operation.
