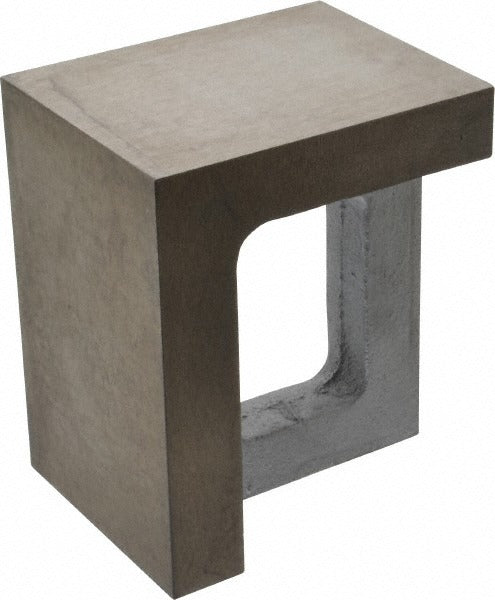

Value Collection 418-4215 Right Angle Iron 1 Hole

Product Description

The VALUE COLLECTION 418-4215 is a precision-ground right angle iron used as a reference and workholding tool in machining, layout, and inspection applications. Manufactured from semi-steel, this angle iron measures 6 inches high, 4 inches wide, and 5 inches deep, and features one hole for fixturing or clamping to a surface plate or machine table. The mating surfaces are ground parallel and square to within 0.0018 inches per 6 inches, providing reliable 90-degree reference geometry for setups requiring close tolerances. At 16 pounds, the mass contributes to stability during use.

This right angle iron is suited for machine shop environments where accurate squaring of workpieces is required prior to milling, grinding, or inspection. It is commonly used on surface plates and magnetic chucks in precision metalworking operations. The single-hole configuration allows straightforward clamping or attachment when securing the tool to a worktable or fixture plate.

Key Features

• Semi-steel construction for rigidity and dimensional stability
• Precision-ground surfaces parallel and square to within 0.0018 inches per 6 inches
• 6 inches high x 4 inches wide x 5 inches deep overall envelope
• Single hole for clamping or fixturing to machine tables and surface plates
• 16-pound mass provides stable footing during layout and inspection setups

Compatibility

Designed as a general-purpose precision right angle iron for use with standard surface plates, magnetic chucks, and machine tables in metalworking and inspection environments.

Installation Notes

Right angle irons are positioned and clamped by machinists and tool-and-die technicians during workpiece setup. Ensure the mounting surface is clean and free of burrs before placing the angle iron to preserve ground-surface accuracy. Clamp securely through the provided hole using appropriate tooling-grade fasteners. Inspect ground surfaces periodically for nicks or corrosion that could affect squareness.
