Value Collection 418-4135 Right Angle Iron 1 Hole Machined

Product Description

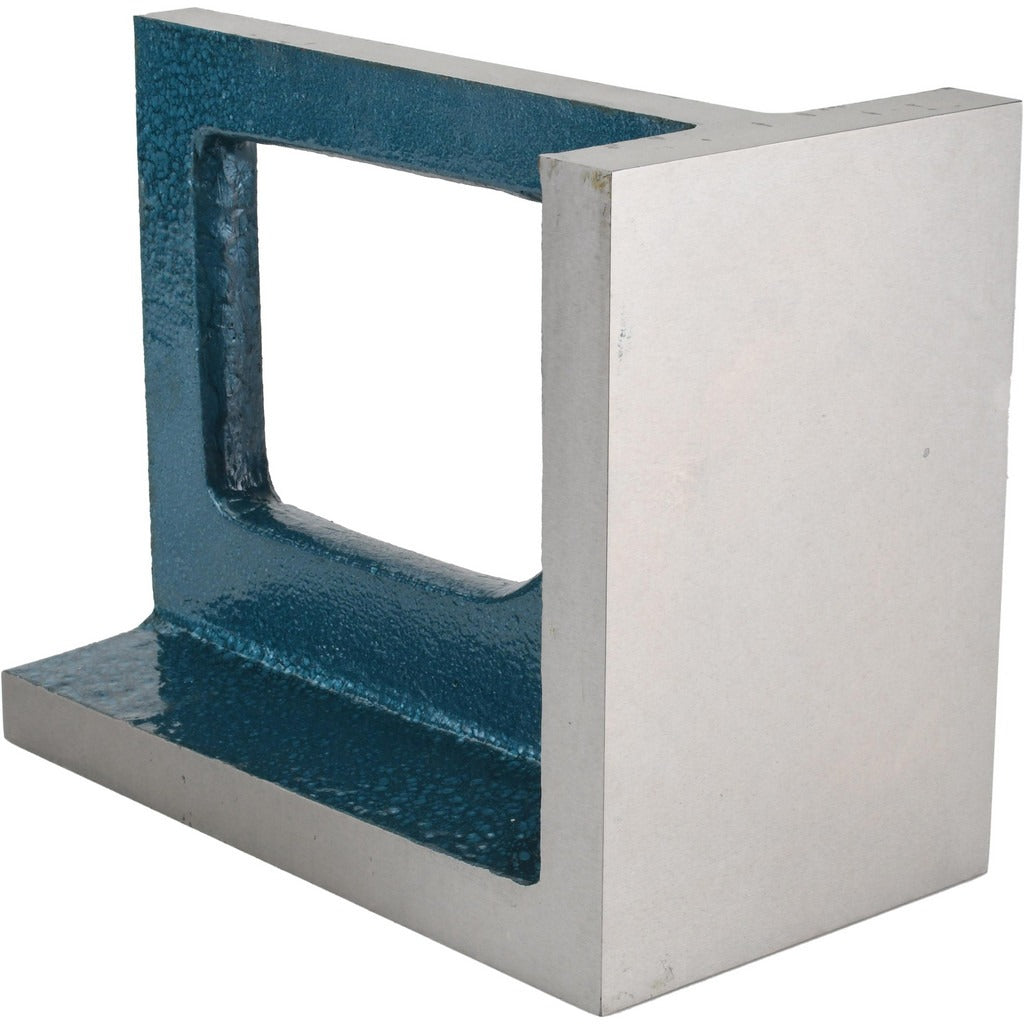

The VALUE COLLECTION 418-4135 is a machined semi-steel right angle iron used as a precision layout and fixturing reference in machine shop and industrial fabrication environments. Standing 10 inches high, 5.5 inches wide, and 8 inches deep with a single mounting hole, this angle iron provides a stable 90-degree reference surface for workholding, inspection, and setup operations. Parallelism is held to within 0.003 inches per 6 inches and squareness to within 0.004 inches per 6 inches, making it suitable for close-tolerance work. Machinists, toolmakers, and fabricators rely on this type of precision ground accessory for accurate part positioning on surface plates and mill tables.

This right angle iron is used in machine shops, tool rooms, and light industrial fabrication settings where a reliable square reference is needed for milling, drilling, inspection, or assembly fixturing. The single-hole configuration allows clamping or anchoring to a table or surface plate. Its semi-steel construction balances rigidity with workability, making it appropriate for general-purpose metrology and setup tasks in both job shop and production environments.

Key Features

• Machined surfaces parallel to within 0.003 inches per 6 inches for close-tolerance setup work
• Square to within 0.004 inches per 6 inches for reliable 90-degree reference
• Semi-steel construction provides rigidity suitable for workholding and inspection applications
• Single hole configuration supports clamping to surface plates or machine tables
• Overall dimensions of 10 inches high, 5.5 inches wide, and 8 inches deep for a stable footprint

Compatibility

Designed as a general-purpose precision right angle iron for use with surface plates, milling machine tables, and inspection fixtures in standard machine shop and fabrication applications.

Installation Notes

Positioning and securing this angle iron is typically performed by machinists or toolmakers during machine setup or inspection routines. Clean all mating surfaces before placement to prevent debris from affecting squareness readings. Secure the unit using the provided hole and appropriate clamps or fasteners rated for the workholding load. Do not use this component as a structural load-bearing element beyond its intended fixturing and reference function.
