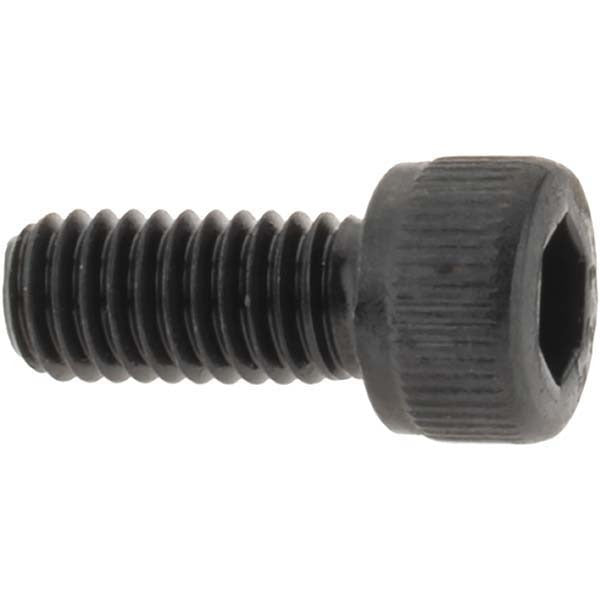

Value Collection -40210-1 Hex Socket Cap Screw 10-32 Unc

Product Description

The VALUE COLLECTION -40210-1 is a fully threaded hex socket cap screw designed for precision fastening in mechanical assemblies, fixtures, and equipment. Sized at 10-32 UNC thread with a 7/16 inch length under head, this fastener is driven with a 5/32 inch hex key. Constructed from alloy steel with a black oxide coating, it delivers solid tensile strength and moderate corrosion resistance in dry or lightly oiled environments. Machinists, maintenance technicians, and assembly workers reach for this screw when a low-profile, high-strength socket head fastener is required in tight clearance applications.

This cap screw is suited for use in precision machine components, jigs, tooling fixtures, light industrial assemblies, and equipment panels where controlled clamping force and a clean socket-drive head are needed. The 10-32 UNC thread form is common in instrumentation, electronics enclosures, and mechanical subassemblies. Full threading along the 7/16 inch shank maximizes thread engagement in shallow blind holes or thin material stacks. It meets ASME/ANSI B18.3 and ASTM A574 standards, confirming dimensional and mechanical compliance for professional applications.

Key Features

• 10-32 UNC fully threaded shank for maximum thread engagement in shallow or thin-material applications
• 5/32 inch hex socket drive for use with standard Allen keys or hex bit drivers
• Alloy steel construction meets ASTM A574 mechanical requirements for socket head cap screws
• Black oxide finish provides a uniform matte appearance and light surface protection
• Conforms to ASME/ANSI B18.3 dimensional standards for consistent fit across compatible hardware

Compatibility

Designed as a standard 10-32 UNC socket head cap screw suitable for any tapped hole or threaded insert conforming to the 10-32 UNC thread form per ASME/ANSI B18.3.

Installation Notes

Installation is performed with a 5/32 inch hex key or Allen-style driver. Ensure the mating tapped hole is clean and free of debris before threading. Do not exceed the torque rating appropriate for the alloy steel grade and thread size. Power down or de-energize any equipment before fastening or removing hardware in electrical or mechanical assemblies.
