Value Collection 400-8055 Swing Clamp Assembly Steel

Product Description

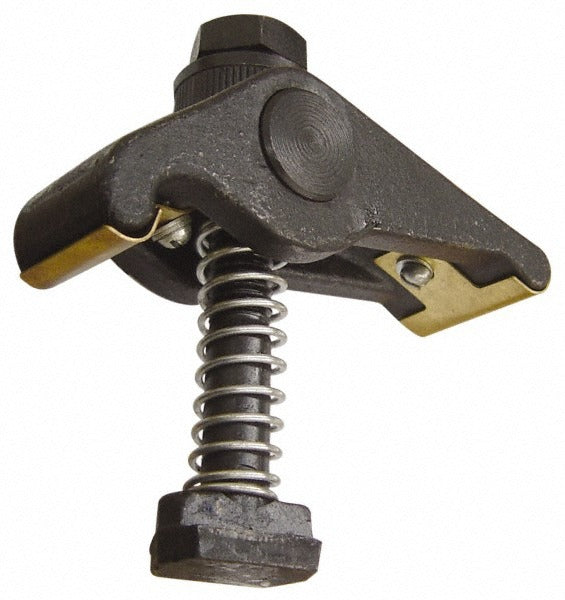

The VALUE COLLECTION 400-8055 is a steel strap clamp assembly designed for workholding applications in machining and fabrication environments. Built as a swing clamp configuration with a swivel strap heel, this assembly secures workpieces to T-slot tables and fixture plates. The stud size is 5/8 inch, and the maximum clamping height reaches 3 inches, making it suitable for a range of part thicknesses. The strap thickness and strap width are each 1-7/8 inches. Machinists, toolmakers, and fixture builders install this type of clamp to hold stock during milling, drilling, and boring operations.

This clamp assembly is used in manual machining centers, CNC setups, and general workholding applications where T-slot clamping is required. The swing clamp design allows the strap to pivot clear of the workpiece for faster loading and unloading. The swivel strap heel accommodates slight surface variations and angled contact surfaces. The included hardware makes this a complete, ready-to-install assembly for production and job-shop environments alike.

Key Features

• Swing clamp assembly design allows strap to pivot clear for quick workpiece changes
• Swivel strap heel accommodates surface angle variation for positive seating
• 5/8 inch stud size fits standard T-slot clamping hardware configurations
• 3 inch maximum clamping height covers a broad range of workpiece thicknesses
• Steel construction provides rigidity and durability under machining loads
• Includes adjustable clamp, flange nut, flat washer, spring, and T-slot bolt for complete installation

Compatibility

Designed as an OEM-style replacement or direct-fit addition for T-slot workholding systems requiring a 5/8 inch stud swing clamp assembly.

Installation Notes

Installation is typically performed by machinists or toolroom personnel familiar with T-slot clamping systems. Power down and lock out any machine tool before positioning or adjusting clamp assemblies on the table. Ensure the T-slot bolt is properly seated in the table slot and the flange nut is tightened securely before beginning any cutting operation. Do not exceed the rated clamping height or apply lateral loads that could unseat the swivel heel.
