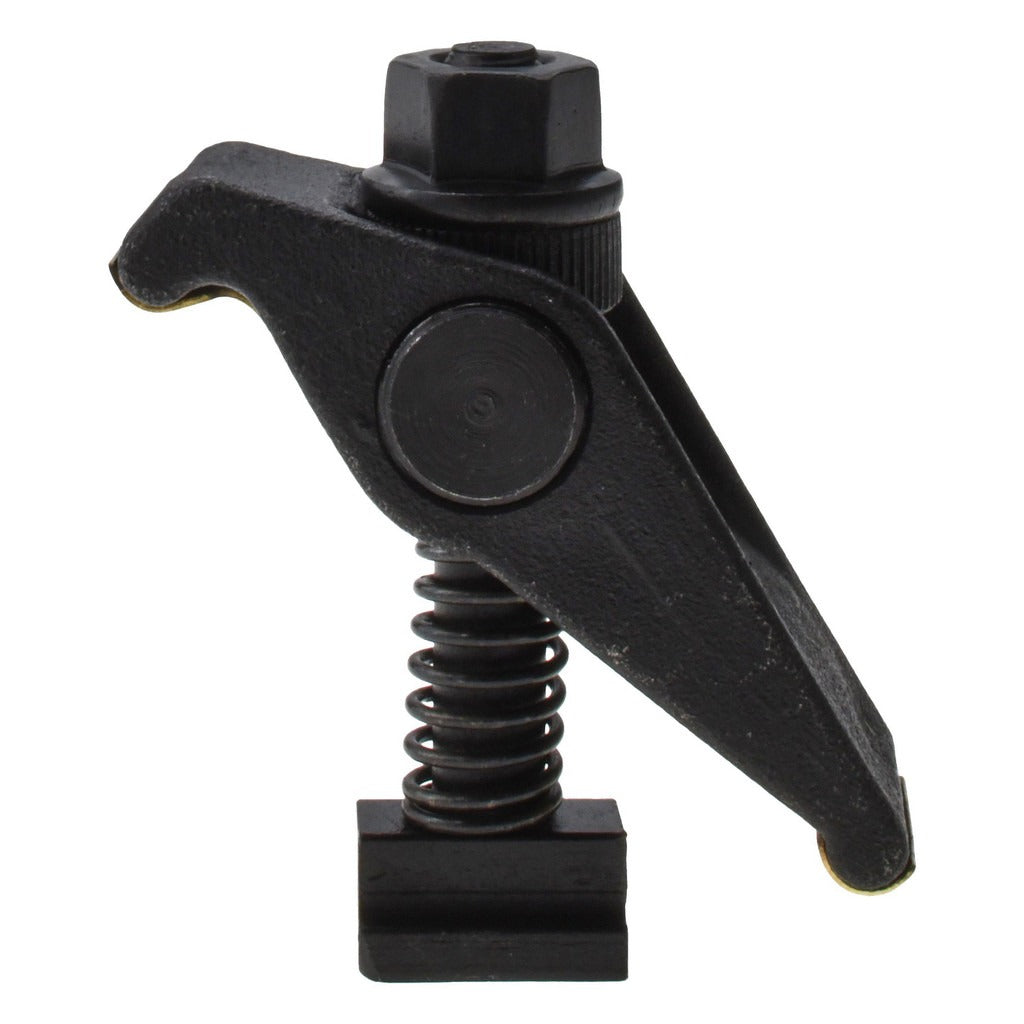

Value Collection 400-8051 Swing Strap Clamp Assembly

Product Description

The VALUE COLLECTION 400-8051 is a steel swing strap clamp assembly designed for workholding applications on milling machines, drill presses, and similar machining equipment. It uses a 3/8 inch stud and accommodates a maximum clamping height of 1-3/4 inches. The strap measures 1 inch thick and 1-1/4 inches wide. The swivel strap heel allows the clamp to adjust to angled or uneven workpiece surfaces, maintaining consistent clamping force across a range of setups. This assembly is used by machinists and tool and die professionals who need a reliable, adjustable workholding solution for production and repair work.

This clamp assembly is suited for use on T-slot tables in manual and CNC machining environments. The swing-style design allows the strap to be repositioned quickly between setups without fully removing the hardware. The included kit makes it a complete, ready-to-install workholding solution for securing workpieces, fixtures, or tooling plates to machine tables in both job shop and production settings.

Key Features

• Swing assembly type allows fast strap repositioning between setups
• Swivel strap heel adjusts to angled or uneven workpiece surfaces
• 3/8 inch stud size for standard T-slot table compatibility
• Maximum clamping height of 1-3/4 inches accommodates a range of workpiece thicknesses
• Steel construction provides durability under repeated clamping loads
• Includes adjustable clamp, flange nut, flat washer, spring, and T-slot bolt — no additional hardware required

Compatibility

Designed as an OEM-style replacement or direct-fit workholding component for standard T-slot machine tables accepting a 3/8 inch stud.

Installation Notes

Installation is typically performed by a machinist or toolroom technician. Power down and lock out the machine before securing or adjusting any workholding hardware. Ensure the T-slot bolt seats fully in the table slot before applying clamping torque. Inspect the swivel heel and strap for wear or deformation before each use to confirm consistent clamping performance.
