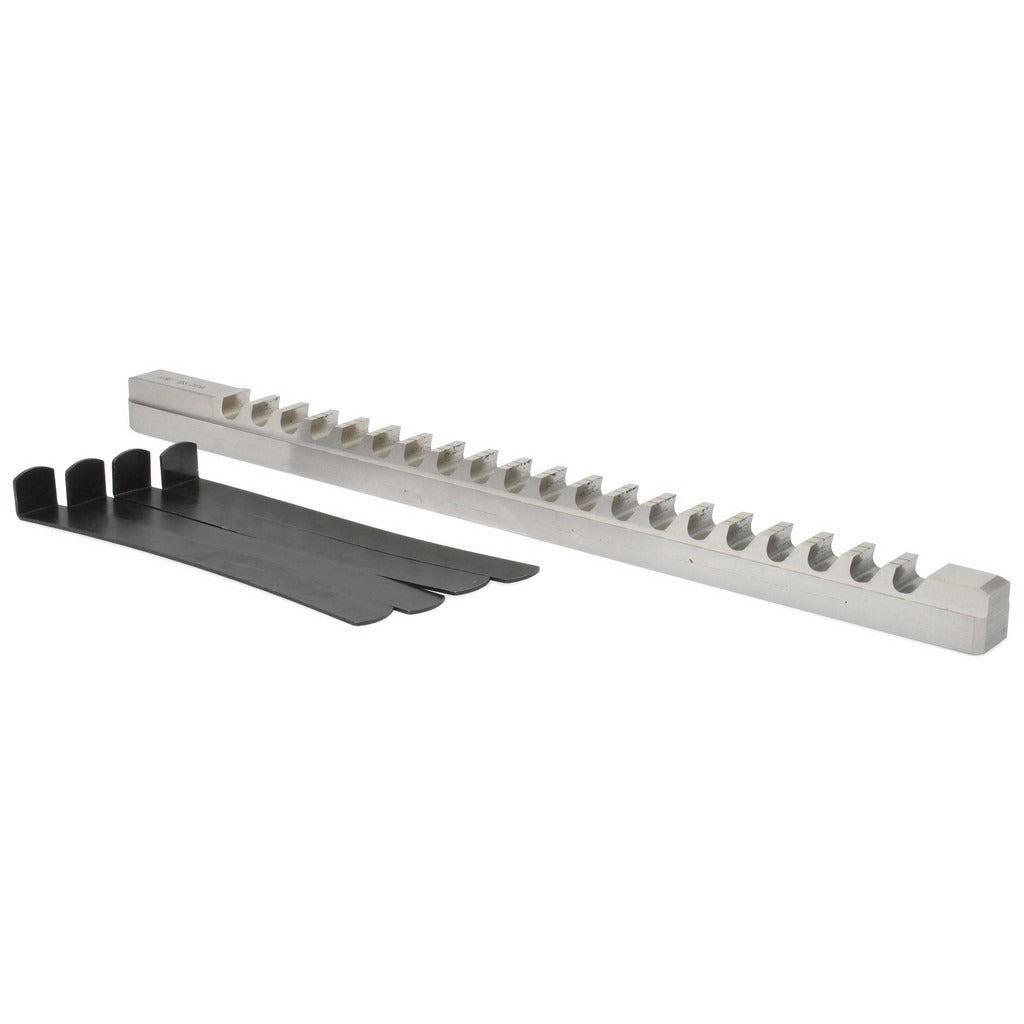

Value Collection 395-1440 Style E Keyway Broach 5/8 in

Product Description

The VALUE COLLECTION 395-1440 is a Style E keyway broach machined from high speed steel for cutting precision keyways in both ferrous and non-ferrous metal workpieces. The broach measures 15.5 inches overall length with a 0.75-inch body width and is designed to produce a 0.625-inch wide keyway slot. The cutting range spans 1 to 6 inches, making it suitable for a wide range of hub depths. A bright finish is applied to the tool surface. Four shims are required for proper sizing during use. This broach is used by machinists and toolroom professionals in production and maintenance environments.

This keyway broach is suited for shop applications where a Style E profile is specified, including cutting keyways in pulleys, gears, couplings, and bushings made from ferrous and non-ferrous metals. It is commonly used with a broaching press or arbor press in both production shops and maintenance repair operations. The 1-to-6-inch cutting length range accommodates a variety of hub thicknesses encountered in typical mechanical assemblies.

Key Features

• Style E broach profile for standard keyway cutting applications
• High speed steel construction for durability in ferrous and non-ferrous materials
• 0.625-inch keyway width with a tolerance of 0.6270 inches
• Cutting length range of 1 to 6 inches accommodates varied hub depths
• 15.5-inch overall length with 0.75-inch body width
• Bright finish for corrosion resistance and surface quality
• Requires 4 shims for proper sizing during broaching operations

Compatibility

Designed for use on ferrous and non-ferrous metals. Compatible with standard broaching presses and arbor presses that accept Style E keyway broach tooling at the specified body width.

Installation Notes

This broach is installed and operated by qualified machinists using a broaching press or arbor press. Ensure the workpiece is securely fixtured and the correct number of shims are stacked before beginning the cut. Inspect the broach for chipping or wear before each use and never force the tool through a workpiece without adequate lubrication. Follow applicable shop safety procedures and machine guarding requirements during broaching operations.
