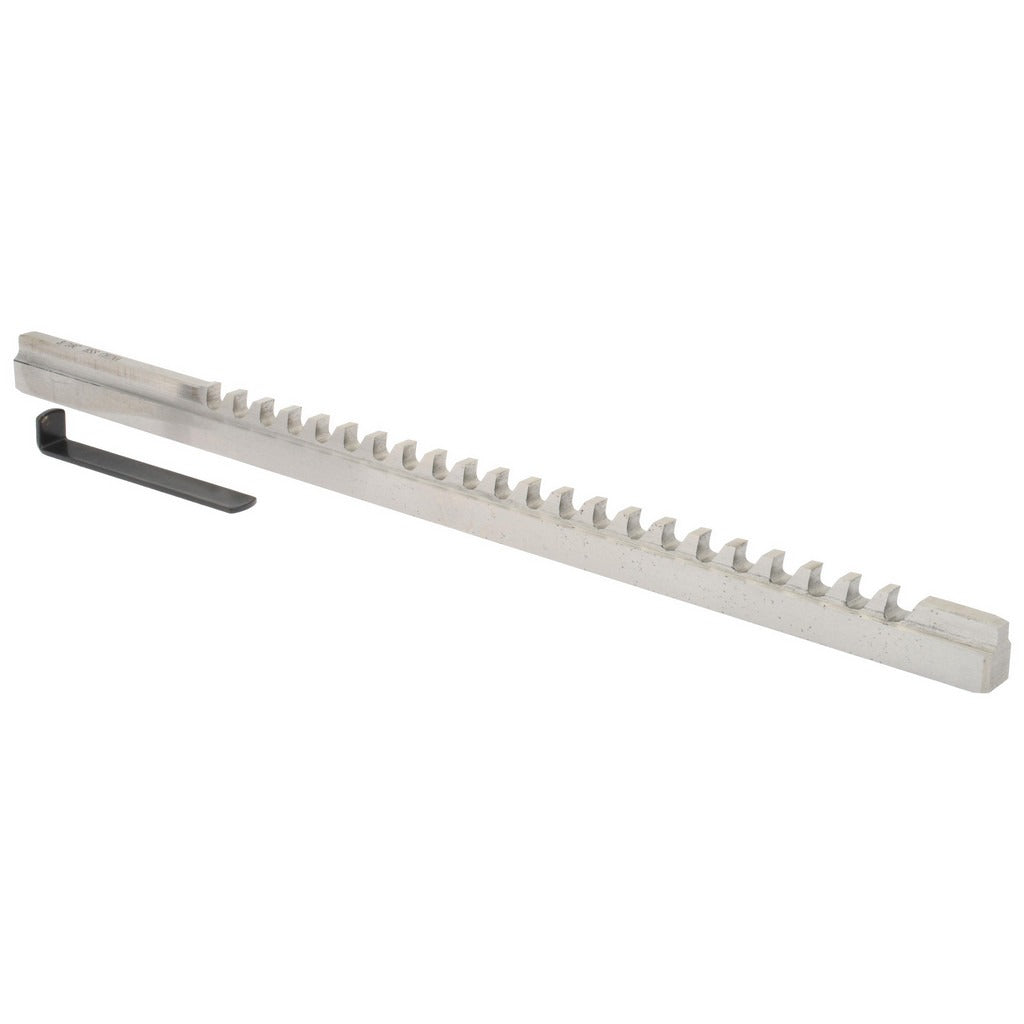

Value Collection 395-1212 Style C Keyway Broach 3/16 in Hss

Product Description

The VALUE COLLECTION 395-1212 is a Style C keyway broach ground from high speed steel for cutting precise keyways in ferrous and non-ferrous metal workpieces. At 3/16 inch wide and 11-3/4 inches overall length, this broach handles cutting lengths from 25/64 inch up to 2-1/2 inches. The bright finish indicates an uncoated, as-ground surface suited for general-purpose broaching. One shim is required for operation and should be sourced or confirmed before beginning the job. Machinists and tool-and-die technicians install this broach using an arbor press or hydraulic press to pull or push the tool through the bore.

This broach is used in machine shops, maintenance facilities, and production environments where keyways must be cut into hubs, gears, pulleys, or bores. Style C broaches are designed for use with a matching bushing and shim system. The 3/8 inch body width and 3/16 inch keyway width make this a standard size for common shaft-to-hub keyway applications across a wide range of ferrous and non-ferrous materials.

Key Features

• Style C broach design compatible with standard bushing and shim sets
• High speed steel construction for durability in ferrous and non-ferrous metals
• 3/16 inch keyway width with a tolerance value of 0.1887 inch for precise fit
• Cutting length range of 25/64 inch to 2-1/2 inches accommodates varied hub depths
• 11-3/4 inch overall length provides adequate push or pull travel in press operations
• Bright finish indicates an uncoated, as-ground surface ready for immediate use

Compatibility

Designed for use in ferrous and non-ferrous metal workpieces requiring a 3/16 inch Style C keyway; requires one shim and a compatible Style C bushing for proper operation.

Installation Notes

Keyway broaching is performed by qualified machinists using an arbor press or hydraulic press rated for the required broaching force. Secure the workpiece firmly and verify the correct bushing and shim are in place before pressing. Never strike the broach with a hammer or use a press that cannot apply smooth, controlled force. Follow shop safety practices including eye protection and proper workholding throughout the operation.
