Value Collection 38754 Round U-bolt 3/4 Inch Pipe Steel

Product Description

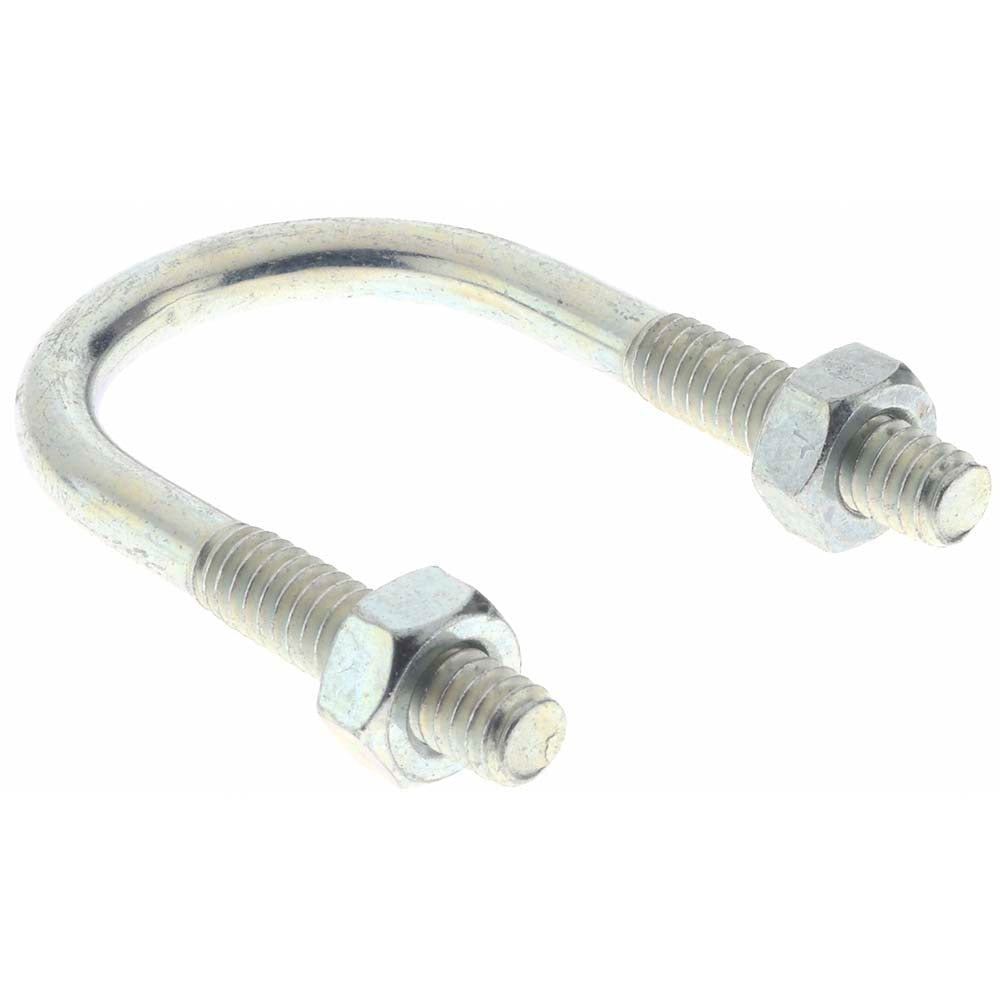

The VALUE COLLECTION 38754 is a round U-bolt designed to secure 3/4-inch pipe without a mount plate. Manufactured from C-1010 steel with a zinc-plated finish for corrosion resistance, this fastener uses a 1/4-20 UNC thread with a 1-inch thread length. Each unit ships with two nuts included. The 38754 is a straightforward, inch-measurement hardware component suited for plumbing, HVAC, and mechanical piping installations where a low-profile, round U-bolt is required. Installation is handled by plumbers, HVAC technicians, and mechanical contractors working with standard 3/4-inch nominal pipe runs.

This U-bolt is sized for 3/4-inch pipe and spans 1-1/8 inches in width, making it a practical fit for pipe support and anchoring tasks in both residential and light commercial settings. The zinc plating provides a baseline level of corrosion protection appropriate for typical indoor and protected outdoor installations. The 1/4-20 UNC thread standard is widely available, simplifying nut replacement or assembly on the job.

Key Features

• Round U-bolt profile sized for 3/4-inch pipe
• 1/4-20 UNC thread with 1-inch thread length for standard fastening
• C-1010 steel construction with zinc-plated finish
• Ships with two matching nuts included
• Without mount plate for direct installation into existing hardware
• Inch measurement system for compatibility with standard trade sizing

Compatibility

Designed as an OEM-style replacement and general-use U-bolt for standard 3/4-inch nominal pipe support applications in plumbing, HVAC, and mechanical piping systems.

Installation Notes

Installation is performed by licensed plumbers or mechanical contractors as part of pipe support and anchoring work. Shut off water supply or system pressure before adjusting or replacing pipe supports. Use appropriate hand tools to tighten nuts evenly on both legs of the U-bolt to avoid cocking the bolt against the pipe. Follow applicable IPC or IFGC support spacing requirements for the pipe material and size being secured.
