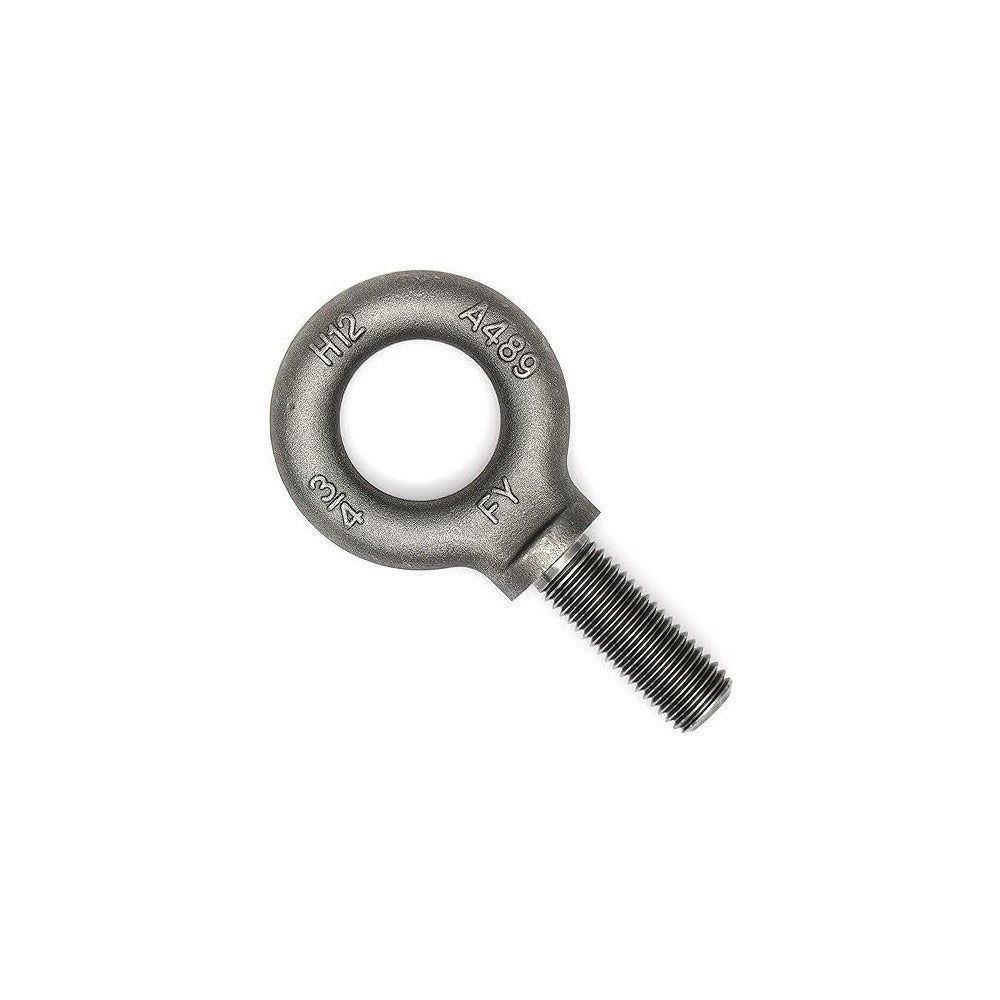

Value Collection 38627 Lifting Eye Bolt 5000 Lb 3/4-10

Product Description

The VALUE COLLECTION 38627 is a fixed shoulder lifting eye bolt rated for a 5,000 lb lifting capacity. It is constructed from Grade 1030 steel and features a fully threaded 2-inch shank with a 3/4-10 thread size. The shoulder design seats against the load surface to resist angular pull and maintain alignment during vertical lifts. This hardware is used in rigging, material handling, and heavy equipment service applications. Installation is performed by millwrights, maintenance mechanics, and rigging crews who require reliable fixed-eye anchor points on machinery, structural members, or fabricated assemblies.

The 38627 is suited for vertical and in-line lifting applications where a fixed eye orientation is acceptable. The shoulder base, measuring 1-3/16 inches in diameter, distributes load at the bearing surface and prevents the bolt from pulling through the workpiece. The 2-inch thread length provides adequate engagement depth for most standard material thicknesses. This eye bolt is appropriate for industrial, commercial, and heavy-trade environments where a rated steel lifting point is required at a threaded connection.

Key Features

• 5,000 lb rated lifting capacity for demanding rigging applications
• Grade 1030 steel construction for strength and durability
• Fully threaded 2-inch shank with 3/4-10 thread size
• Shoulder base at 1-3/16 inches diameter seats flush against the load surface
• Eye inside diameter of 1-1/2 inches accommodates standard shackles and hooks
• Eye outside diameter of 2-13/16 inches provides a robust loop profile

Compatibility

Designed for use in standard 3/4-10 threaded holes in steel, cast iron, or similarly threaded structural members requiring a fixed lifting anchor point.

Installation Notes

Installation is performed by qualified riggers or maintenance mechanics following applicable ASME B30 rigging standards. Thread the bolt fully into the receiving hole until the shoulder seats flush and firm against the work surface before applying any load. De-rate the lifting capacity when the load angle deviates from vertical, as fixed eye bolts are not designed for significant angular loading. Inspect the eye, shank threads, and shoulder seating surface for damage before each use.
