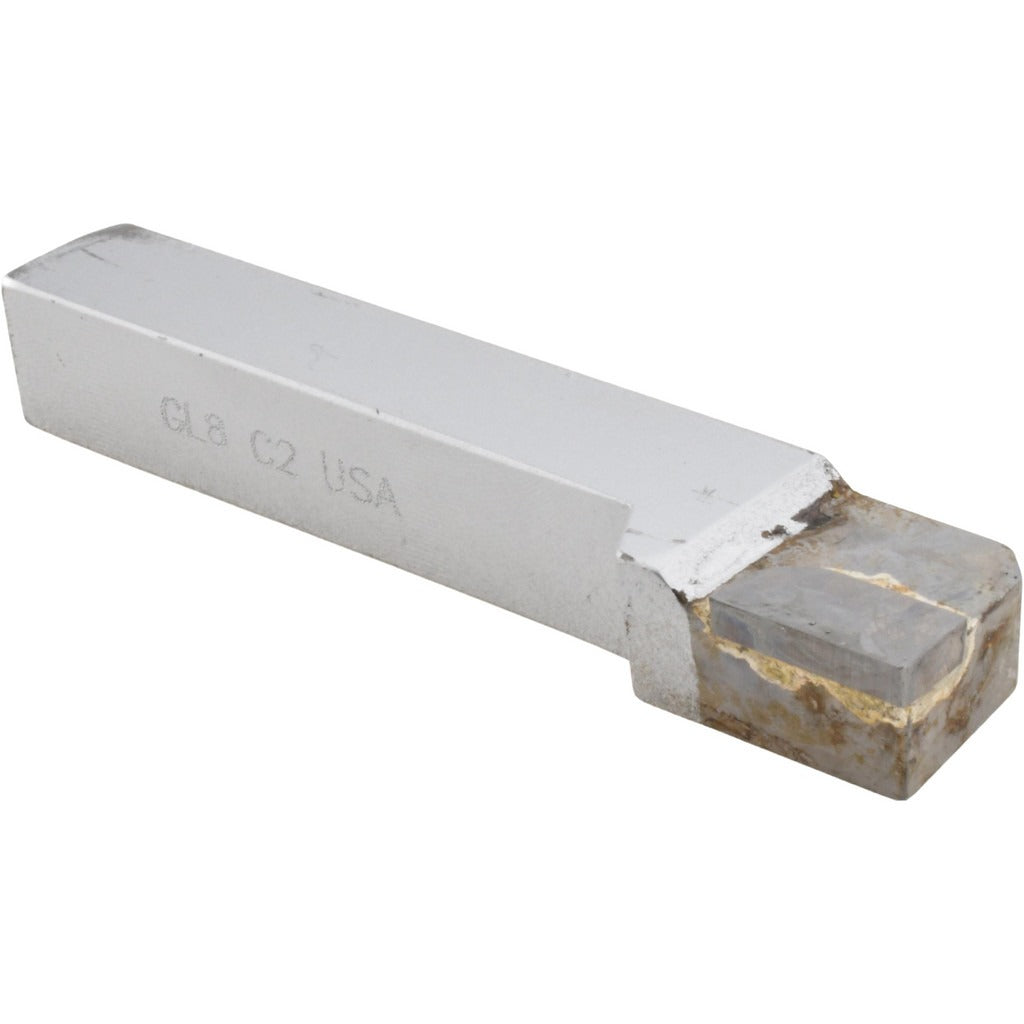

Value Collection 383-8302 GL-8 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-8302 is a GL-8 style single-point tool bit designed for offset end cutting operations on manual and CNC lathes. Built with a C2-grade solid carbide tip brazed to a steel shank, this bit delivers consistent performance on turning and facing applications. The left-hand cutting direction suits setups where the tool feeds from left to right. The 1/2 inch by 1/2 inch shank cross-section fits standard tool posts and holders in that size class. A 1/32 inch nose radius balances surface finish quality with edge strength on general-purpose cuts. Overall length is 3-1/2 inches. Machinists and toolroom operators are the typical users.

This tool bit is rated for turning and facing to a shoulder, as well as work performed close to a chuck jaw — situations where tool clearance is tight and an offset end-cutting geometry is required. The left-hand configuration makes it well suited for operations where the carriage travels toward the tailstock or where a right-hand bit would interfere with a chuck jaw or fixture. It is appropriate for use on ferrous and non-ferrous metals where C2-grade carbide provides adequate wear resistance and edge retention without excessive brittleness.

Key Features

• GL-8 industry standard geometry for consistent fit in compatible tool holders
• C2-grade solid carbide tip for wear resistance on turning and facing cuts
• Left-hand offset end-cutting style allows turning to a shoulder and close-to-chuck work
• 1/32 inch nose radius balances finish quality with edge durability
• 1/2 inch x 1/2 inch shank fits standard tool post slots in that size range
• 3-1/2 inch overall length provides adequate tool reach in most lathe setups

Compatibility

Designed as an OEM-style replacement and general-use fit for standard lathe tool posts and holders accepting a 1/2 inch shank height and 1/2 inch shank width with GL-style single-point bit geometry.

Installation Notes

Installation is performed by a machinist or toolroom technician. The lathe must be powered off and the spindle fully stopped before seating or adjusting any tool bit. Set tool height to spindle centerline using a tool height gauge before making cuts. Inspect the carbide tip for cracks or chipping before use — a damaged carbide tip should not be placed in service.
