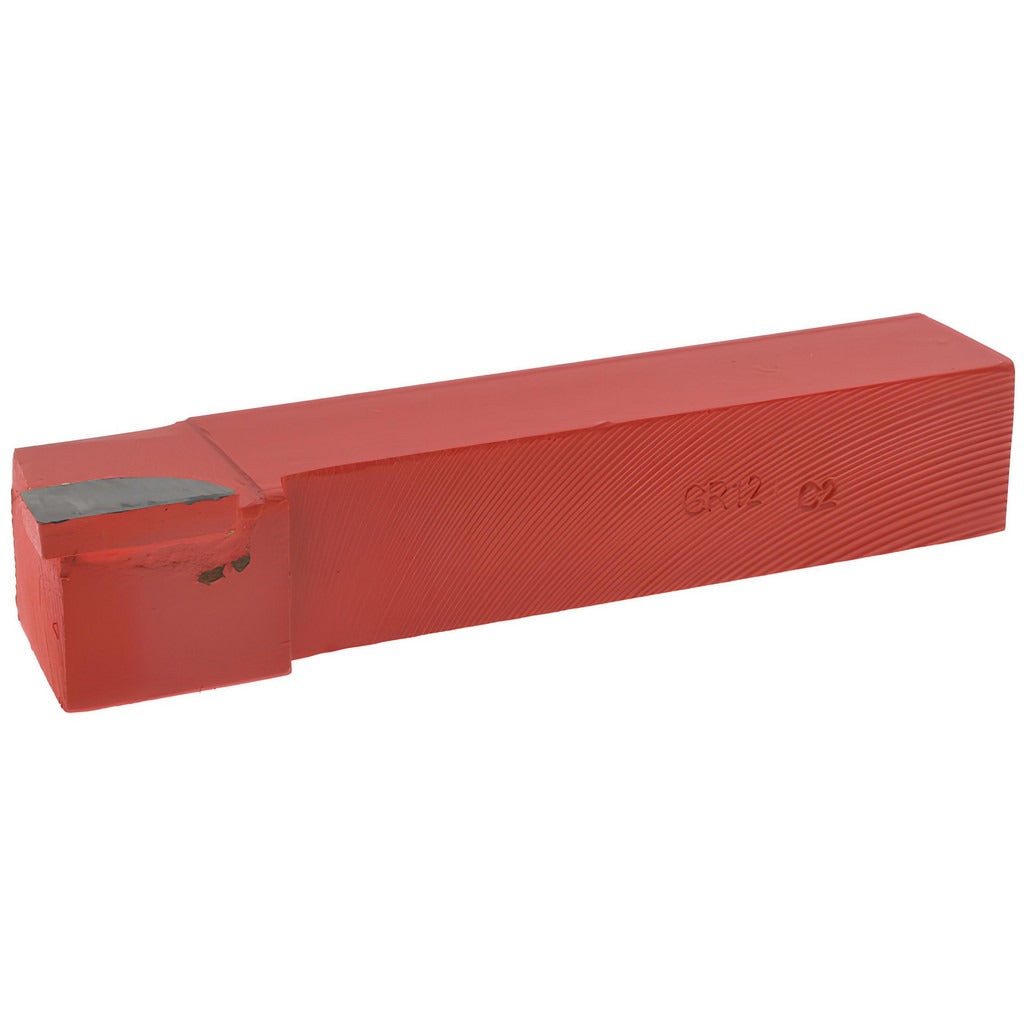

Value Collection 383-8232 GR-12 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-8232 is a GR-style single-point tool bit designed for lathe turning and facing operations. Built to industry standard GR-12 geometry, it features a C2-grade solid carbide tip brazed to a square shank measuring 3/4 inches in height and 3/4 inches in width. The overall length is 4.5 inches, and the nose radius is 1/32 inches. The right-hand cutting direction means it feeds from right to left across the workpiece. This tool bit is installed and used by machinists and tool-and-die professionals working on manual or CNC engine lathes.

The 383-8232 is suited for turning and facing to a shoulder, as well as for working close to a chuck jaw where clearance is limited. The offset end-cutting configuration of the GR style allows the tool to reach into tight areas without interference. Typical applications include general-purpose turning of steel, cast iron, and non-ferrous materials where the C2 carbide grade provides a balance of wear resistance and toughness. This tool bit fits standard square-shank tool holders designed for 3/4-inch shank tooling.

Key Features

• GR-12 industry standard geometry for consistent, repeatable setups
• C2 solid carbide tip for wear resistance across a range of workpiece materials
• Offset end-cutting style enables turning and facing to a shoulder
• Right-hand cutting direction for conventional lathe feed
• 1/32-inch nose radius for moderate surface finish and edge strength
• Compact 4.5-inch overall length suitable for close-clearance work near chuck jaws

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for standard square-shank tool holders accepting 3/4-inch shank tooling on manual and CNC engine lathes.

Installation Notes

This tool bit is installed by machinists in a compatible square-shank tool holder; ensure the holder bore matches the 3/4-inch shank dimensions before mounting. Secure the tool bit with the appropriate set screws and verify tool height is on center before cutting. Always power down and lock out the lathe spindle before changing or adjusting tooling. Follow applicable shop safety standards and machine manufacturer guidelines for tool overhang and cutting parameters.
