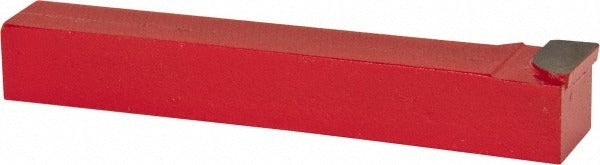

Value Collection 383-8002 FR-8 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-8002 is an FR-style offset end cutting single-point tool bit built for right-hand cutting operations on manual and CNC lathes. The bit features a C2-grade solid carbide tip brazed to a 0.5 x 0.5 inch shank and measures 3.5 inches in overall length. The 1/32 inch nose radius is suited for straddle facing as well as turning and facing to shoulder. At 0.27 pounds, this is a compact, single-piece carbide-tipped tool intended for machinists and toolroom operators running general-purpose metal-cutting applications where carbide tip hardness is required for extended tool life and consistent surface finish.

This tool bit is designed for straddle facing operations and turning or facing to shoulder on a lathe. Its offset end cutting geometry and right-hand orientation make it a practical choice in production and job-shop environments where a reliable, interchangeable FR-style bit is needed. It ships as a single unit, making it easy to stock as an individual replacement or test unit alongside existing tooling setups.

Key Features

• FR-8 industry standard number for straightforward cross-reference and replacement sourcing
• C2-grade solid carbide tip for hardness and wear resistance on ferrous and non-ferrous materials
• Offset end cutting geometry supports straddle facing and turning or facing to shoulder
• Right-hand cutting direction with 1/32 inch nose radius for controlled surface finish
• 0.5 x 0.5 inch shank fits standard lathe tool holders sized for that shank cross-section
• 3.5 inch overall length provides sufficient reach for common turning setups

Compatibility

Designed as an OEM-style replacement or direct substitution for FR-8 industry standard single-point tool bits used in lathe tool holders with a 0.5 x 0.5 inch shank slot.

Installation Notes

Machinist or toolroom personnel should install this bit with the machine fully powered off and the spindle locked before seating the shank in the tool holder. Confirm the tool holder bore matches the 0.5 x 0.5 inch shank dimensions before tightening. Inspect the carbide tip for cracks or braze voids prior to use. Handle carbide-tipped bits with care to avoid chipping the tip during storage or setup.
