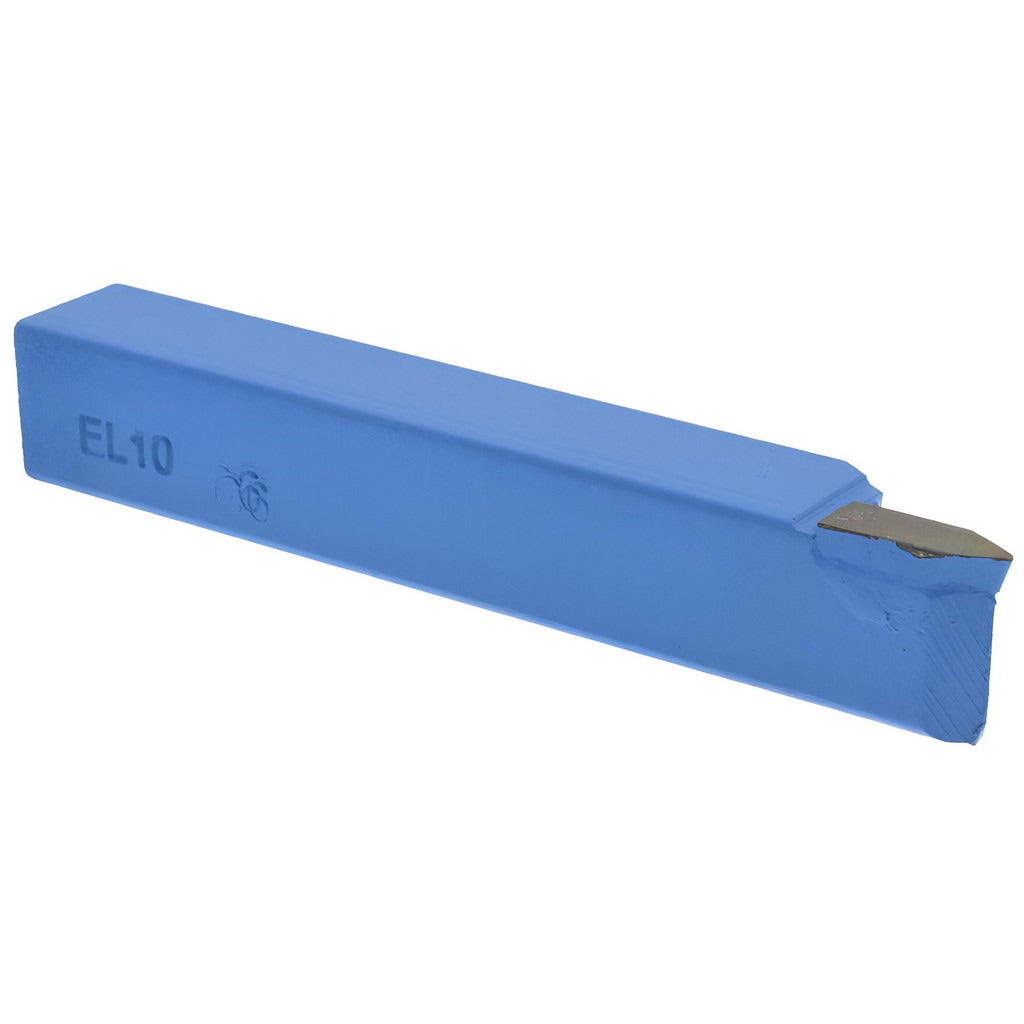

Value Collection 383-6346 EL-10 Offset Threading Tool Bit

Product Description

The VALUE COLLECTION 383-6346 is an EL-style single-point tool bit designed for offset threading and V-grooving operations on a lathe. The bit features a solid carbide tip with a C6 grade rating, suited for threading at a 60-degree included angle. The shank measures 5/8 inches in height and 5/8 inches in width, with an overall length of 4 inches. The left-hand cutting direction makes it the correct choice for applications requiring reverse-rotation or right-to-left tool travel. Machinists and tool-and-die professionals install this type of bit in standard lathe tool holders for precision threading work.

This tool bit is configured for threading and V-grooving to shoulder, meaning it can cut close to a shoulder or step feature without interference. The EL-style offset geometry provides clearance in tight lathe setups where a straight bit would not reach. It is used in both production and job-shop environments where consistent thread form and shoulder access are required. The left-hand orientation suits specific fixturing setups and specialized threading passes on metal workpieces.

Key Features

• EL-style offset geometry for threading and V-grooving to shoulder
• Solid carbide tip, C6 grade, for wear resistance in threading applications
• 60-degree included angle matches standard thread form geometry
• Left-hand cutting direction for reverse-rotation or specialized threading passes
• 5/8 inch square shank fits standard lathe tool holders
• Compact 4-inch overall length for use in close-clearance setups

Compatibility

Designed as an OEM-style replacement or direct-use single-point threading bit for standard lathe tool holders accepting a 5/8 inch square shank with EL-10 industry standard sizing.

Installation Notes

Installation is performed by a machinist or toolroom professional. Power down and lock out the lathe before inserting or adjusting the tool bit in the holder. Secure the shank firmly in the tool post to prevent chatter during threading passes. Verify cutting direction matches spindle rotation and feed direction before starting the cut.
