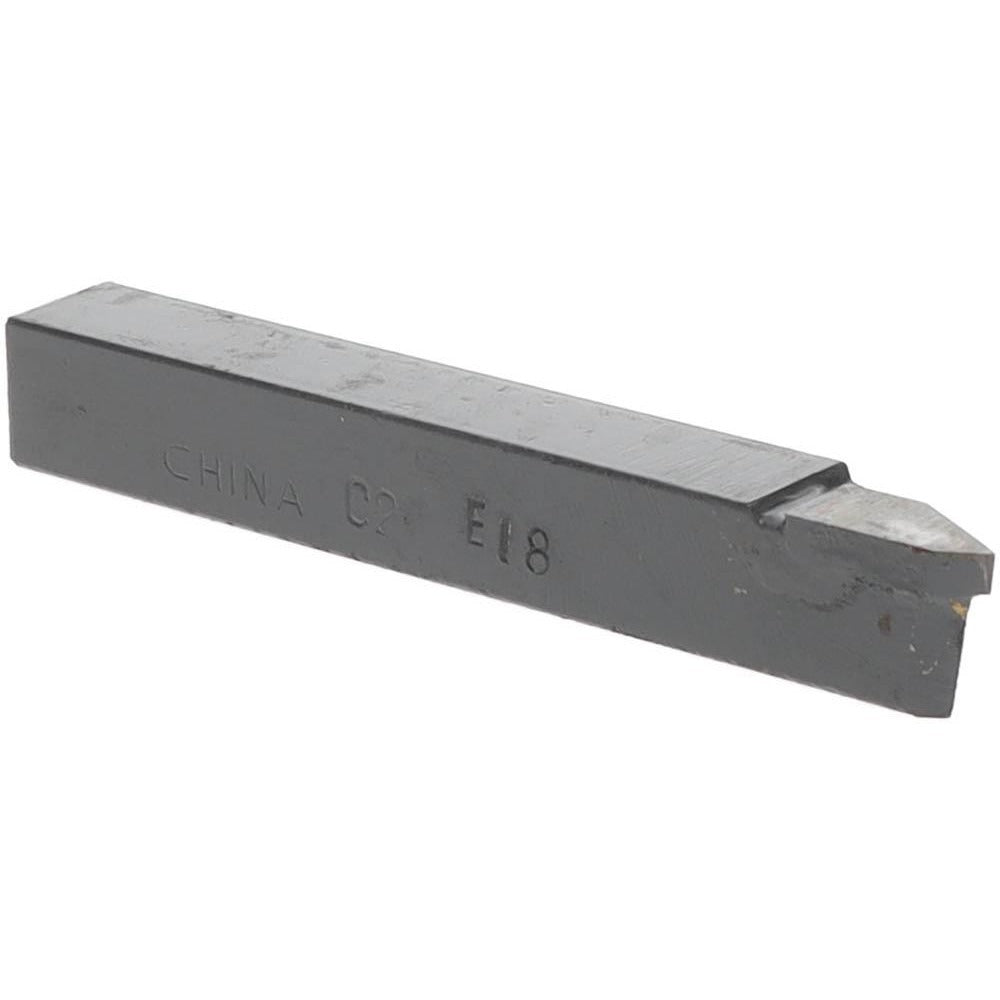

Value Collection 383-6322 EL-8 Tool Bit Left Hand C2 Carbide

Product Description

The VALUE COLLECTION 383-6322 is a single-point, left-hand offset threading tool bit built to the EL-8 industry standard. It features a solid carbide tip rated C2 grade, which delivers the hardness and wear resistance needed for consistent thread-cutting performance on ferrous and non-ferrous materials. The shank measures 0.5 inches in height and 0.5 inches in width, with an overall length of 3.5 inches. The 60-degree included angle makes it suitable for threading and V-grooving operations. This tool bit is used by machinists and toolroom operators on manual and CNC lathes.

Designed for offset threading and V-grooving to shoulder applications, the 383-6322 fits standard tool holders that accept EL-style, 0.5-inch shank tool bits. The left-hand cutting direction is specified for applications where the tool must advance from chuck to tailstock, or where workpiece rotation or fixturing demands a left-hand approach. It is commonly used in production shops, job shops, and maintenance machining environments where threading to a shoulder requires precise cutter positioning.

Key Features

• EL-8 industry standard designation for drop-in compatibility with EL-style tool holders
• C2 solid carbide tip for hardness and extended tool life in threading applications
• 60-degree included angle supports standard unified thread forms and V-groove profiles
• Left-hand cutting direction for specific workpiece or machine configurations
• Offset threading geometry allows threading and V-grooving right to a shoulder
• Compact 3.5-inch overall length suited to standard lathe toolpost setups

Compatibility

Designed as an OEM-style replacement or direct-use tool bit for EL-style single-point tool holders accepting a 0.5-inch square shank.

Installation Notes

This tool bit is installed and serviced by qualified machinists. Ensure the lathe is fully powered off and the spindle is locked before seating or adjusting the tool bit in the holder. Set tool height on center using a height gauge before cutting. Follow applicable shop safety standards and machine manufacturer guidelines when selecting feeds, speeds, and depth of cut for carbide tooling.
