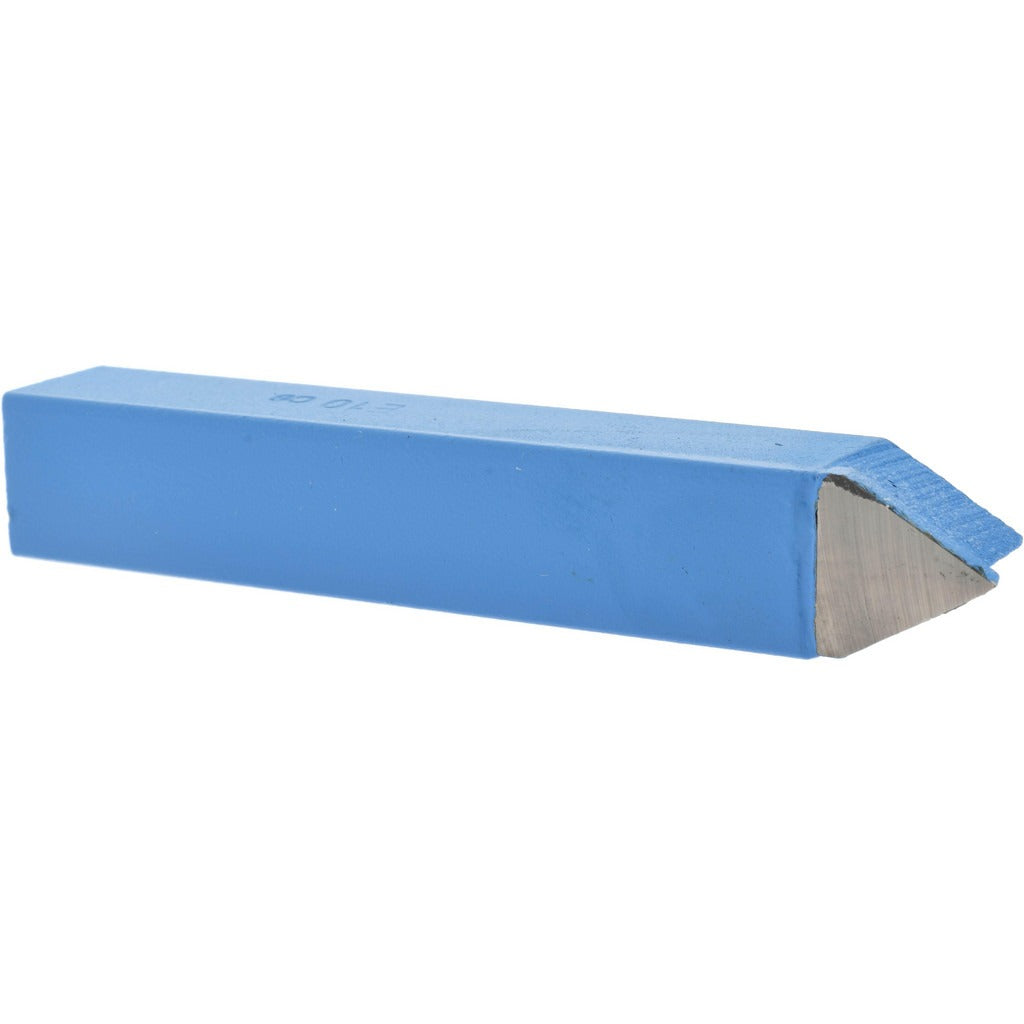

Value Collection 383-4056 E-10 Threading Tool Bit C6 Carbide

Product Description

The VALUE COLLECTION 383-4056 is a single-point threading tool bit built for precision cutting operations in metal machining applications. Conforming to industry standard number E-10 with a Style E profile, this tool bit features a C6-grade solid carbide tip brazed to a rigid shank measuring 5/8 inches in height and 5/8 inches in width. The neutral cutting direction and 60-degree included angle make it well-suited for threading, chamfering, undercutting, and V-grooving. Overall length is 4 inches. At 0.43 pounds, the tool seats securely in standard tool holders used on lathes and threading machines.

This tool bit is used in shop environments where consistent thread form and clean groove geometry are required. It is appropriate for both production and job-shop turning operations involving threading passes, chamfer lead-ins, undercut relief cuts, and V-groove profiles. Machinists and toolroom operators running manual or CNC lathes will find this bit compatible with standard E-style tool holders. The C6 carbide grade is generally applied to general-purpose machining of cast iron, non-ferrous metals, and similar materials at moderate cutting speeds.

Key Features

• C6 solid carbide tip for wear resistance and consistent edge retention
• 60-degree included angle suits standard unified thread forms and V-groove profiles
• Neutral cutting direction for straight-in threading and grooving passes
• Industry standard E-10 designation for compatibility with E-style tool holders
• Multipurpose cutting application: threading, chamfering, undercutting, and V-grooving
• Compact 4-inch overall length for use in tight turret and tool post setups

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for lathes and threading machines accepting E-style single-point tool holders with a 5/8-inch shank seat.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and de-energize the machine spindle completely before seating or removing tool bits. Secure the shank firmly in the tool holder to the holder manufacturer's clamping specification before engaging any cutting pass. Inspect the carbide tip for cracks or chipping before each use; a damaged tip should not be put into service.
