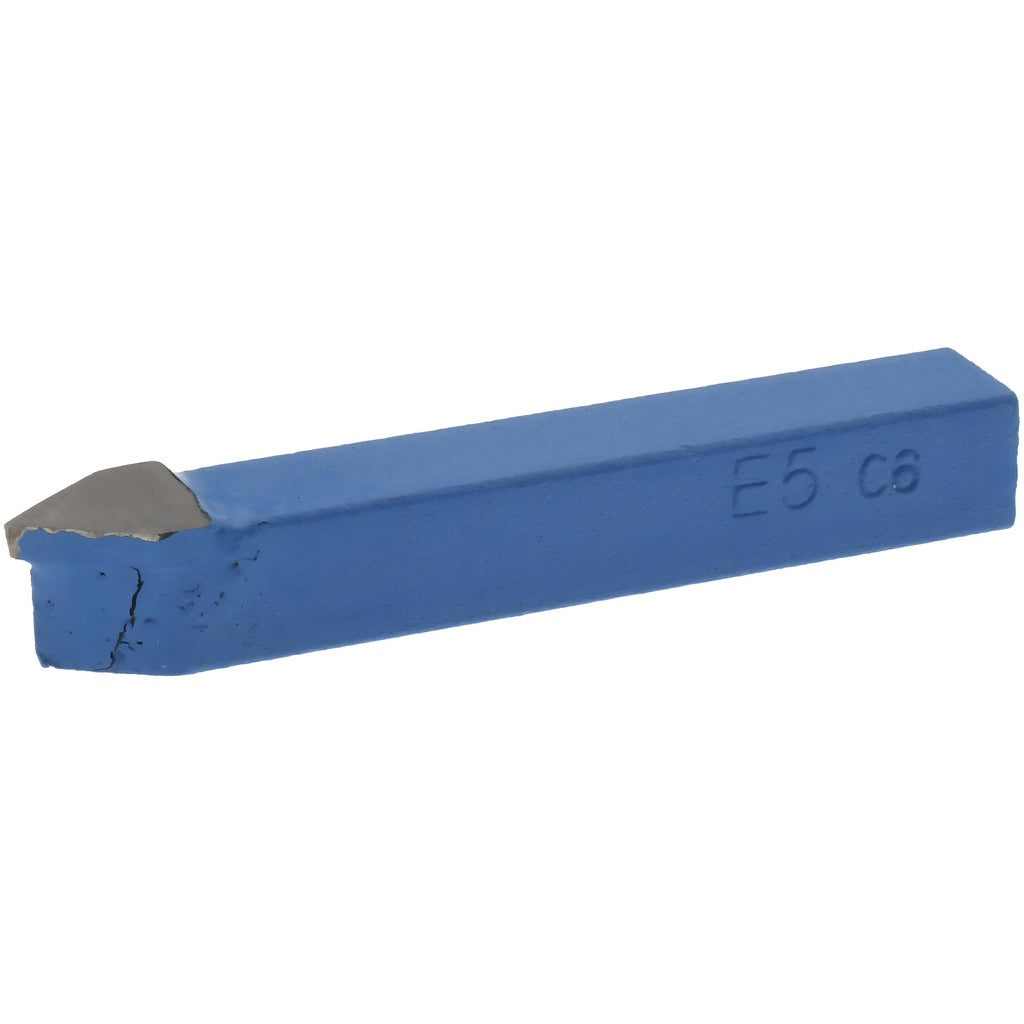

Value Collection 383-4016 Threading Tool Bit E-5 C6 Carbide

Product Description

The VALUE COLLECTION 383-4016 is a single-point threading tool bit designed for precision cutting operations on lathes and turning centers. Built to the E-5 industry standard, it features a 5/16 inch square shank and a solid carbide tip graded C6 for wear resistance in demanding applications. The neutral cutting direction makes it suitable for both left-to-right and right-to-left passes. At 2.25 inches overall length and weighing 0.12 pounds, this compact tool bit is sized for standard toolpost holders. It is typically installed by machinists and tooling technicians working in metalworking and fabrication environments.

The 383-4016 is suited for a range of cutting applications including threading, chamfering, undercutting, and V-grooving. The 60-degree included angle matches standard thread forms, making it a practical choice for general-purpose threading work on ferrous and non-ferrous materials. Its compact overall length of 2.25 inches suits smaller tool holders and bench lathes as well as production turning equipment in light industrial shops.

Key Features

• E-5 industry standard single-point tool bit for consistent toolpost fit
• C6 solid carbide tip for hardness and extended cutting life
• Neutral cutting direction supports versatile pass orientation
• 60-degree included angle for standard thread form compatibility
• Rated for threading, chamfering, undercutting, and V-grooving applications
• Compact 2.25 inch overall length fits standard and bench-scale tool holders

Compatibility

Designed as an OEM-style replacement and standard fitment for E-style single-point tool bit holders accepting a 5/16 inch shank height and 5/16 inch shank width.

Installation Notes

Installation is performed by qualified machinists following standard lathe tooling procedures. Ensure the machine spindle is fully stopped and locked out before changing or seating tool bits. Secure the shank firmly in the toolpost holder to the specified clamping torque for your holder make and model. Verify tool height alignment to centerline before taking a test pass.
