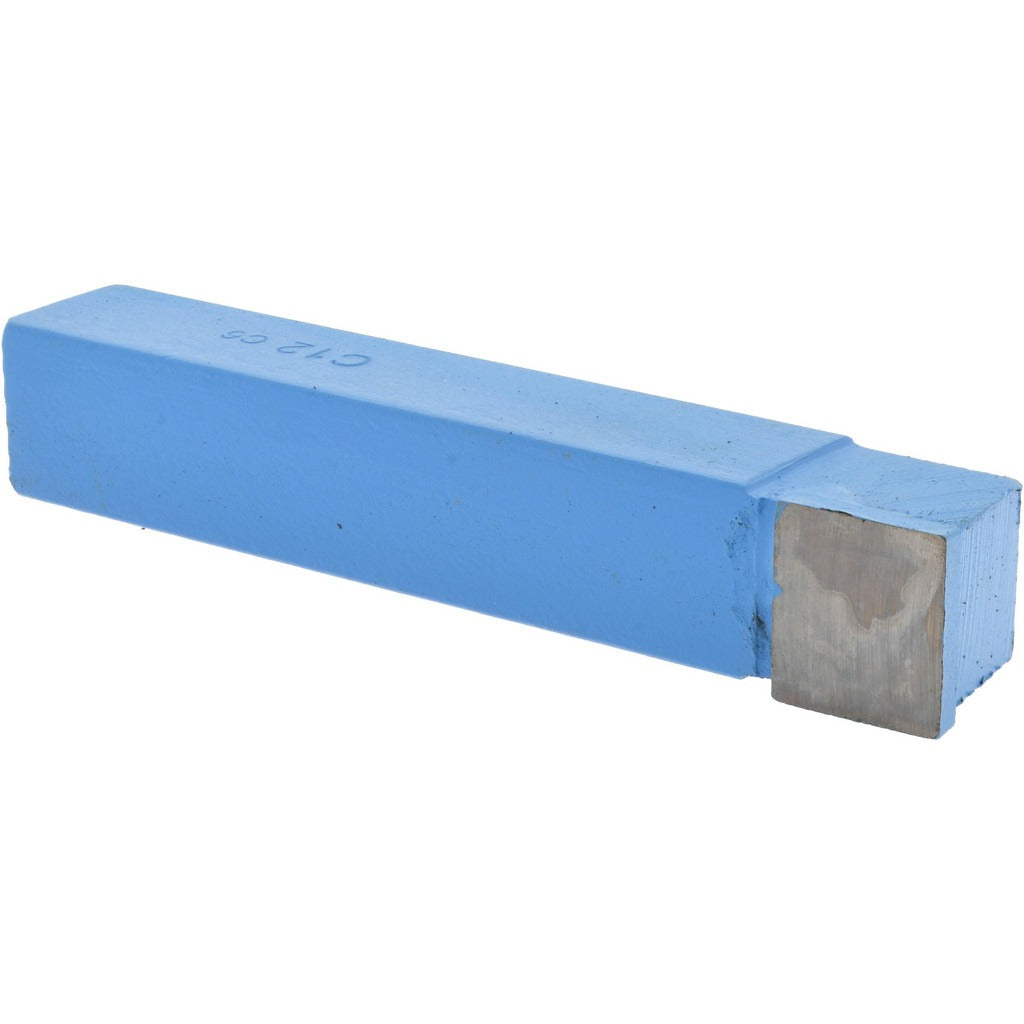

Value Collection 383-2066 Single-point Tool Bit C-12 C6 Carbide

Product Description

The VALUE COLLECTION 383-2066 is a single-point tool bit built for lathe and turning center operations where reliable material removal and edge definition are required. This bit follows the C-12 industry standard and features a solid carbide tip rated to C6 grade, a designation suited for general-purpose machining of cast iron, nonferrous metals, and similar materials. The neutral cutting direction allows the bit to remove material straight into the cut without redirecting lateral forces, making it a practical choice for facing, turning, and forming operations. The shank measures 3/4 inches in both height and width, and the overall length is 4.5 inches. It is installed by machinists and tool-and-die professionals working on manual or CNC lathes.

This tool bit is appropriate for a range of common machining operations including chamfering, facing, forming, and turning. The square nose geometry and neutral cutting direction suit situations where the operator needs a predictable, centered cut without tool pull in either direction. It is commonly used in production shops, maintenance machining environments, and job shops handling mixed-material work. The C6 carbide grade offers a balance of hardness and toughness for interrupted and continuous cuts on ferrous and nonferrous workpieces.

Key Features

• C-12 industry standard designation for consistent toolholder compatibility
• Solid carbide tip at C6 grade for durability in general-purpose machining
• Neutral cutting direction for straight-in material removal
• Square nose geometry supports chamfering, facing, forming, and turning applications
• 3/4 inch by 3/4 inch shank cross-section for secure clamping in standard toolholders
• 4.5 inch overall length provides adequate reach for typical lathe setups

Compatibility

Designed as a C-12 style single-point tool bit for use in standard toolholders accepting a 3/4 inch by 3/4 inch shank. Verify toolholder specifications before installation.

Installation Notes

Installation is performed by qualified machinists following standard lathe setup procedures. Ensure the machine is fully powered down and the spindle is locked before seating or removing tool bits. Use a torque wrench on toolholder set screws only to manufacturer-specified values for the holder in use — do not over-tighten against the carbide shank. Inspect the carbide tip for chipping or cracking before each use, as solid carbide can fracture under impact if a defect is present.
