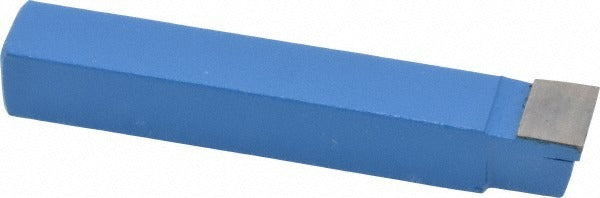

Value Collection 383-2036 Single-point Tool Bit C-7 Neutral

Product Description

The VALUE COLLECTION 383-2036 is a single-point tool bit designed for general-purpose metal cutting operations in lathe and turning center applications. Built to the C-7 industry standard with a square nose profile and neutral cutting direction, this tool bit features a solid carbide tip at C6 grade for reliable hardness and wear resistance. The shank measures 7/16 inches in both height and width, and the overall length is 3 inches. At 0.18 pounds, it is compact and well-suited for precision work. Licensed machinists and toolroom technicians rely on this style of tool bit for consistent performance across a range of ferrous and non-ferrous workpieces.

This tool bit is suited for use in manual lathes, CNC turning centers, and engine lathes in both job shop and production environments. It handles multiple cutting operations including chamfering, facing, forming, and turning. The neutral cutting direction makes it adaptable for right-hand or left-hand feed applications depending on setup. It is a practical choice for shops that need a reliable C-7 form tool bit without special-order lead times.

Key Features

• C-7 industry standard form factor for direct replacement compatibility
• Solid carbide C6 grade tip for high wear resistance on steel and cast iron
• Square nose profile supports chamfering, facing, forming, and turning operations
• Neutral cutting direction allows flexible right- or left-hand feed use
• 7/16 inch square shank fits standard tool holders in that size range
• Compact 3 inch overall length for use in tighter tool post setups

Compatibility

Designed as a standard C-7 style single-point tool bit suitable for use in tool holders and lathe setups that accept a 7/16 inch square shank.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Secure the shank firmly in a compatible tool holder and verify that the tool bit does not extend beyond the recommended overhang for the holder size. Power down and lock out the machine before mounting or adjusting the tool bit. Inspect the carbide tip for chips or cracks before each use and replace if damage is present.
