Value Collection 383-2022 Single-point Tool Bit C-6

Product Description

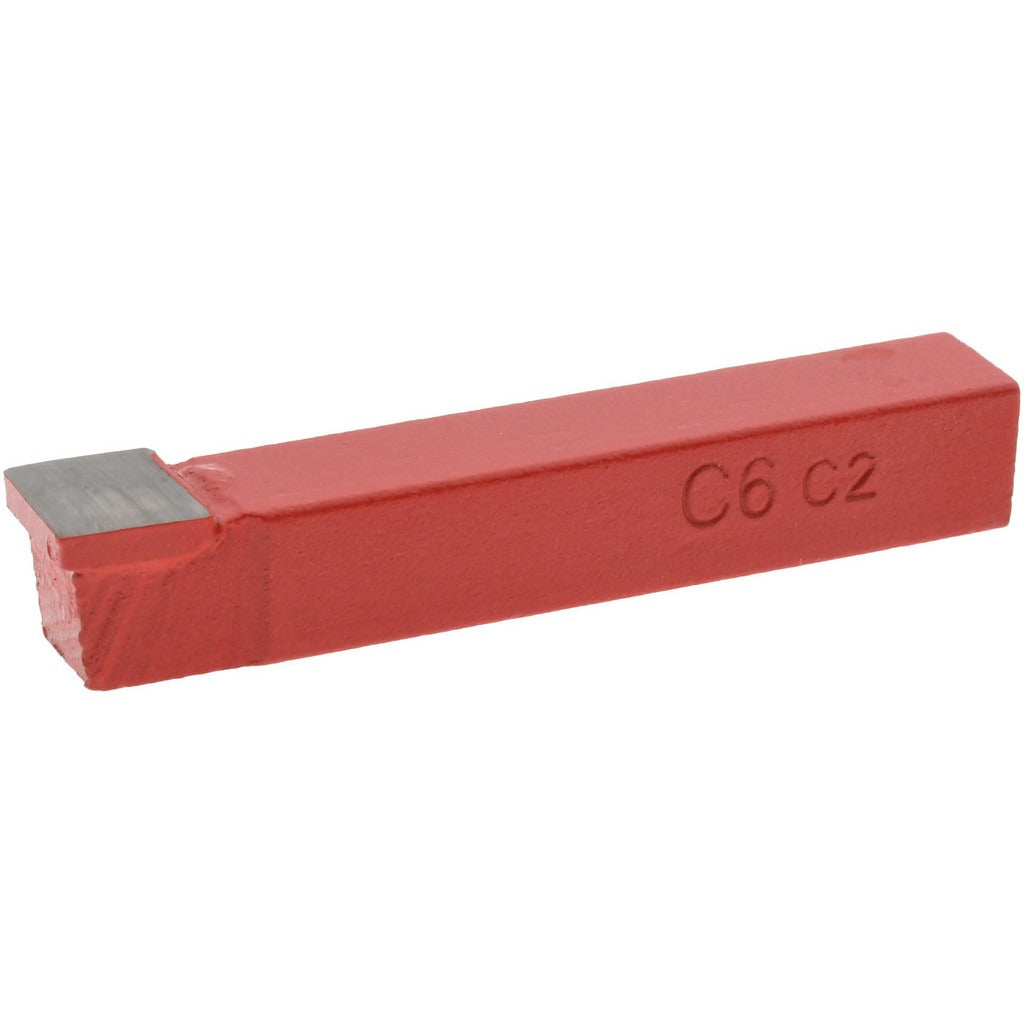

The VALUE COLLECTION 383-2022 is a single-point tool bit designed for precision metal cutting operations on lathes and turning centers. Built to the C-6 industry standard with a square nose profile and neutral cutting direction, it features a C2-grade solid carbide tip brazed to a square shank measuring 3/8 inches in height and 3/8 inches in width. The overall length is 2.5 inches. Weighing 0.12 pounds, this compact tool bit is suited for machinists and toolroom technicians who need a reliable, ready-to-use cutting tool without custom grinding. The C2 carbide grade delivers good wear resistance for general-purpose ferrous and non-ferrous machining.

This tool bit is used in manual and CNC lathe setups for a range of common operations including turning, facing, chamfering, and forming. The neutral cutting direction makes it adaptable to straight cuts without favoring a right- or left-hand approach. Its compact 2.5-inch overall length fits standard tool holders sized for 3/8-inch square shanks, making it a practical choice for light-to-medium duty production and jobshop environments. Machinists servicing or setting up turning equipment will find it a direct drop-in for tool posts and quick-change holders accepting this shank size.

Key Features

• C-6 industry standard classification for consistent cross-brand compatibility in lathe tooling setups
• C2 solid carbide tip grade provides hardness and wear resistance suitable for general ferrous and non-ferrous cutting
• Square nose, neutral cutting direction supports turning, facing, chamfering, and forming operations
• 3/8 inches x 3/8 inches square shank fits standard quick-change and lantern-style tool posts
• Compact 2.5-inch overall length for use in smaller tool holders and bench lathes
• Lightweight at 0.12 pounds for easy handling and quick changeover

Compatibility

Designed as an OEM-style replacement or direct-fit tool bit for lathe tool holders and quick-change tooling systems that accept a 3/8-inch square shank, conforming to the C-6 industry standard.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Always stop the spindle and isolate machine power before seating or adjusting the tool bit in the holder. Ensure the shank is fully seated and the set screws are tightened evenly to prevent tool deflection during the cut. Do not exceed the material and speed ratings appropriate for C2 carbide grade tooling.
