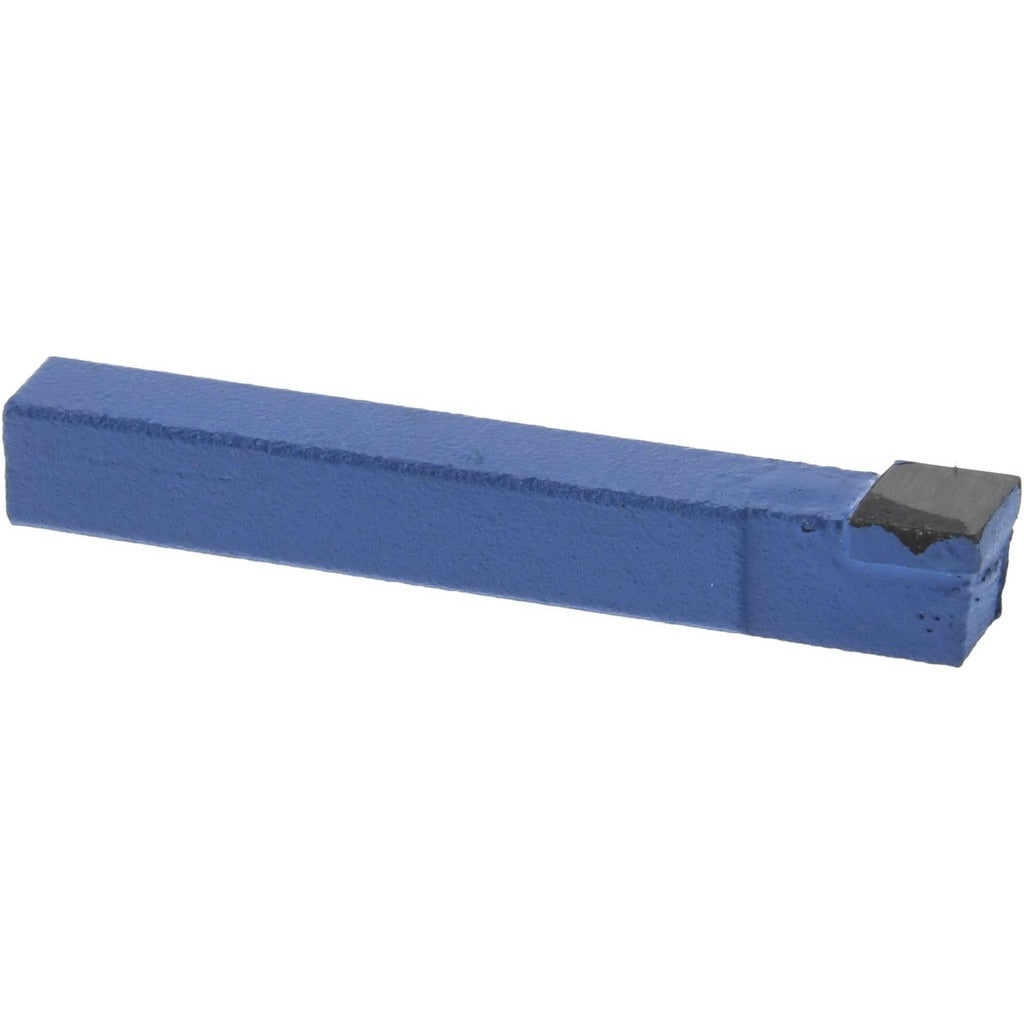

Value Collection 383-2006 C-4 Single-point Tool Bit

Product Description

The VALUE COLLECTION 383-2006 is a C-4 style, square-nose single-point tool bit designed for precision metal cutting operations on lathes and turning centers. The bit features a C6 solid carbide tip brazed to the shank, providing the hardness and wear resistance needed for interrupted cuts and harder workpiece materials. With a 1/4 inch shank height and 1/4 inch shank width, it is sized for smaller toolpost setups and benchtop lathes. The neutral cutting direction means the bit does not favor left- or right-hand feeding, making it versatile across multiple pass orientations. Machinists and tool-and-die professionals install this type of bit where consistent edge geometry and material hardness are required.

The 383-2006 is suited for light- to medium-duty lathe work in job shops, maintenance facilities, and manufacturing environments. Its 2 inch overall length fits standard tool holders designed for 1/4 inch shank bits. Cutting applications include chamfering, facing, forming, and turning operations on ferrous and non-ferrous materials. The C6 carbide grade is commonly selected for general-purpose turning where a balance of toughness and hardness is needed.

Key Features

• C6 solid carbide tip for improved hardness and wear resistance over high-speed steel alternatives
• Neutral cutting direction supports both left- and right-hand feed passes without repositioning
• Square-nose profile suited for chamfering, facing, forming, and turning
• 1/4 inch by 1/4 inch shank fits standard small-bore toolposts and holders
• 2 inch overall length for compact tool station setups
• C-4 industry standard designation for straightforward replacement sourcing

Compatibility

Designed as an OEM-style replacement or direct-fit option for toolpost holders and lathe tool stations accepting 1/4 inch square shank single-point tool bits with a C-4 industry standard designation.

Installation Notes

Installation is performed by qualified machinists or tool-and-die technicians. Power down and lock out the lathe or turning center before seating or changing any tool bit. Ensure the shank is fully seated and clamped in the toolpost to the manufacturer-specified engagement depth for the holder in use. Inspect the carbide tip for chips or cracks before each use, as a compromised tip can cause part damage or tool ejection during operation.
