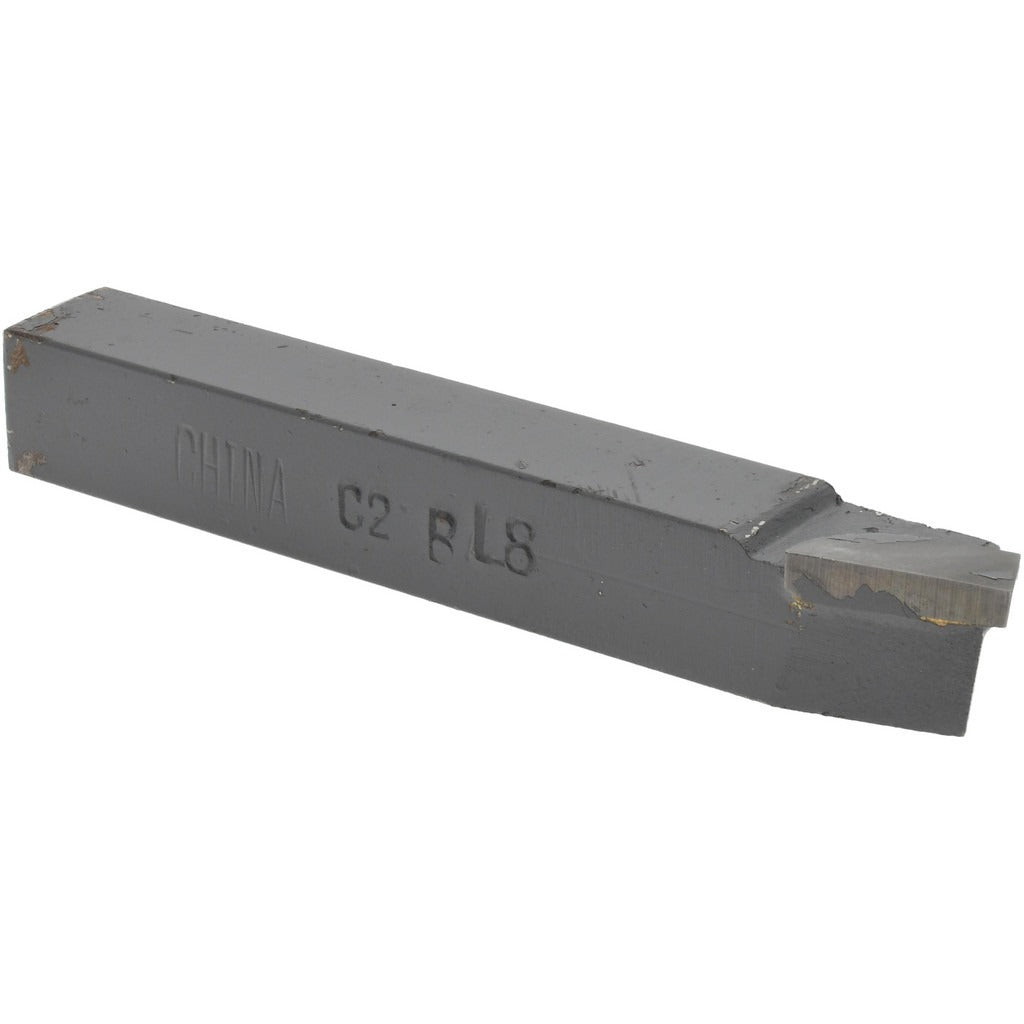

Value Collection 383-1152 Single-point Tool Bit BL-8 Left Hand

Product Description

The VALUE COLLECTION 383-1152 is a left-hand, single-point tool bit built to the BL-8 industry standard. It features a solid carbide tip rated at grade C2, a 0.5 inch shank height, a 0.5 inch shank width, and an overall length of 3.5 inches. The 15-degree lead angle supports aggressive stock removal and smooth entry into the cut. This tool bit is installed and used by machinists and tool-and-die professionals working on manual or CNC lathes where left-hand cutting geometry is required. The C2 carbide grade balances wear resistance and toughness, making it a reliable choice for general-purpose turning and interrupted-cut applications.

The 383-1152 is suited for a range of lathe operations including turning, boring, chamfering, and interrupted cuts on ferrous and non-ferrous materials. Its BL-style geometry is a recognized industry-standard form, making it a straightforward fit in standard tool holders designed for that shank profile. The left-hand cutting direction makes it appropriate for right-to-left feed passes or for applications where workpiece setup requires cutting away from the chuck. This tool bit is commonly used in job shops, maintenance machining environments, and production cells where versatility across multiple operations is a priority.

Key Features

• BL-8 industry standard designation for consistent fitment in compatible toolholders
• C2 solid carbide tip grade provides good wear resistance for general-purpose and interrupted-cut use
• 15-degree lead angle supports turning, boring, and chamfering in a single tool
• Left-hand cutting direction for right-to-left feed passes
• Compact 3.5 inch overall length suits standard lathe tool posts and holders

Compatibility

Designed as a direct-fit replacement or working tool for any toolholder or lathe tool post that accepts the BL-8 shank profile with 0.5 inch shank height and 0.5 inch shank width.

Installation Notes

Installation is performed by machinists using a standard tool post or toolholder sized for a 0.5 inch shank. Ensure the lathe is fully powered down and the spindle is locked before seating or adjusting the tool bit. Clamp the shank securely and verify tool height alignment to centerline before taking a cut. Inspect the carbide tip for chips or cracks before each use, particularly after interrupted-cut operations.
